Ultrasonic Impedance Analyzer Machine Used in Ultrasound Labortory or Factory

Ultrasonic Impedance Analyzer Machine Used in Ultrasound Labortory or Factory

Large Image :  Ultrasonic Impedance Analyzer Machine Used in Ultrasound Labortory or Factory

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.PER MONTH
Detailed Product Description



Ultrasonic Impedance Analyzer Machine Used in Ultrasound Labortory or Factory







Impedance analyzer is mainly applicable to objects for various types of ultrasound device impedance measurement, including: piezoelectric ceramics, transducer, ultrasonic cleaning machine, ultrasonic plastic welder, acoustic, magnetic expansion material, ultrasonic disintegrator, ultrasonic atomization, ultrasonic cleaning, ultrasonic ranging, ultrasonic milk, ultrasonic cleaning, ultrasonic motor, and so on all the use of ultrasound equipment.

Impedance analyzer is characterized by: easy to use, indicators and graphics combination, accurate parameters, low prices, the production of a very strong guidance.

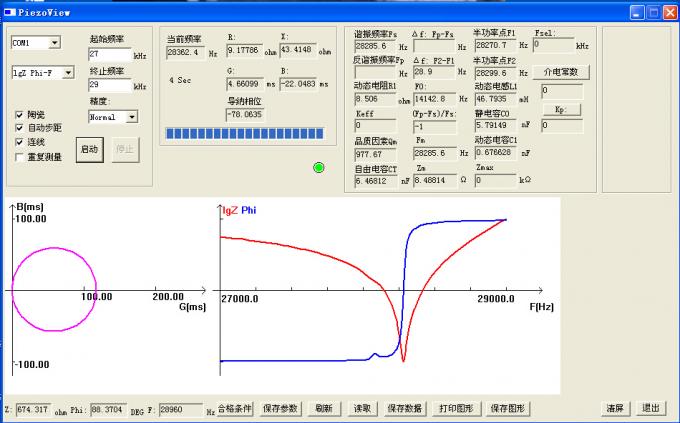

Impedance measurement of piezoelectric devices is a prerequisite for the correct use of the device. For piezoelectric devices, by the impedance analyzer can get the main parameters, including resonant frequency FS, anti resonant frequency FP, half power point of F1 and F2, maximum admittance Gmax, electrostatic capacitance C0, dynamic reactor R1, dynamic capacitance C1, dynamic inductance L1, free capacitance CT, free dielectric constant, mechanical quality factor QM, mechanical and electrical coupling coefficient keff, KP, K31, k33, and can draw pressure electric device five characteristic curve (admittance characteristic diagram, characteristic impedance, admittance polar pattern and impedance polar diagram, logarithmic plots).



Type

C220

C320

Frequency Range

1KHZ-500Khz

1Khz-1Mhz

Measurement Index

All parameter, graphics



Measurement Accuracy

< 1%

< 0.5%

Measurement Speed

10 second/piece(equivalent

to 600 scan dots)

5 second/piece(equivalent

to 600 scan dots)

Frequency Accuracy

±15ppm

±5ppm

Phase Resolution

0.15 degree

0.15 degree

Enviroment temperature

10-40 cº

10-40 cº

Impedance Range

1Ω~1MΩ

1Ω~1MΩ

Frequency Step

0.1Hz~any

0.1Hz~any

Application

Ultrasonic equipment testing,

ultrasonic cleaning,

ultrasonic welding,

ultrasonic medical

Inspection production line of

piezoelectric ceramic below 1MHz



Frequency Range: 1KHZ-1MHz

Min.Frequency Step: 0.1HZ

Measurement accuracy: < 0.5%

Measurement speed: five seconds per pieces(equivalent to 600 scan dots)

Frequency accuracy: ±5ppm

Phase Accuracy: 0.15 degree

Enviroment temperature: 10-40 cº

Impedance Range: 1Ω~1MΩ

Frequency step: less than 1MHZ



Ultrasonic Impedance Analyzer Machine Used in Ultrasound Labortory or Factory



Resonance Frequency: Fs

Half Power Frequency: F1 and F2

Maximum real admittance at Fs: Gmax

Dynamic Resistance: R1

Anti resonance frequency: Fp

Mechanical quality factor: Qm

Free capacitance: CT

Dynamic inductance: L1

Dynamic capacitance: C1

Static capacitance: Co

electromechanical coupling coefficient: Keff and Kp

Maximum real impedance at Fp: Zmax
