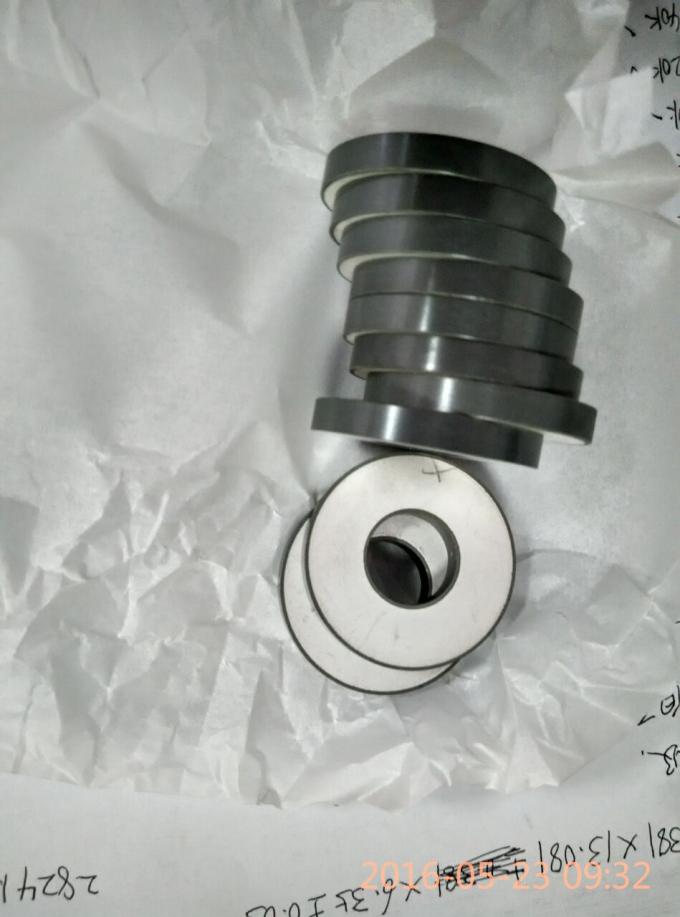

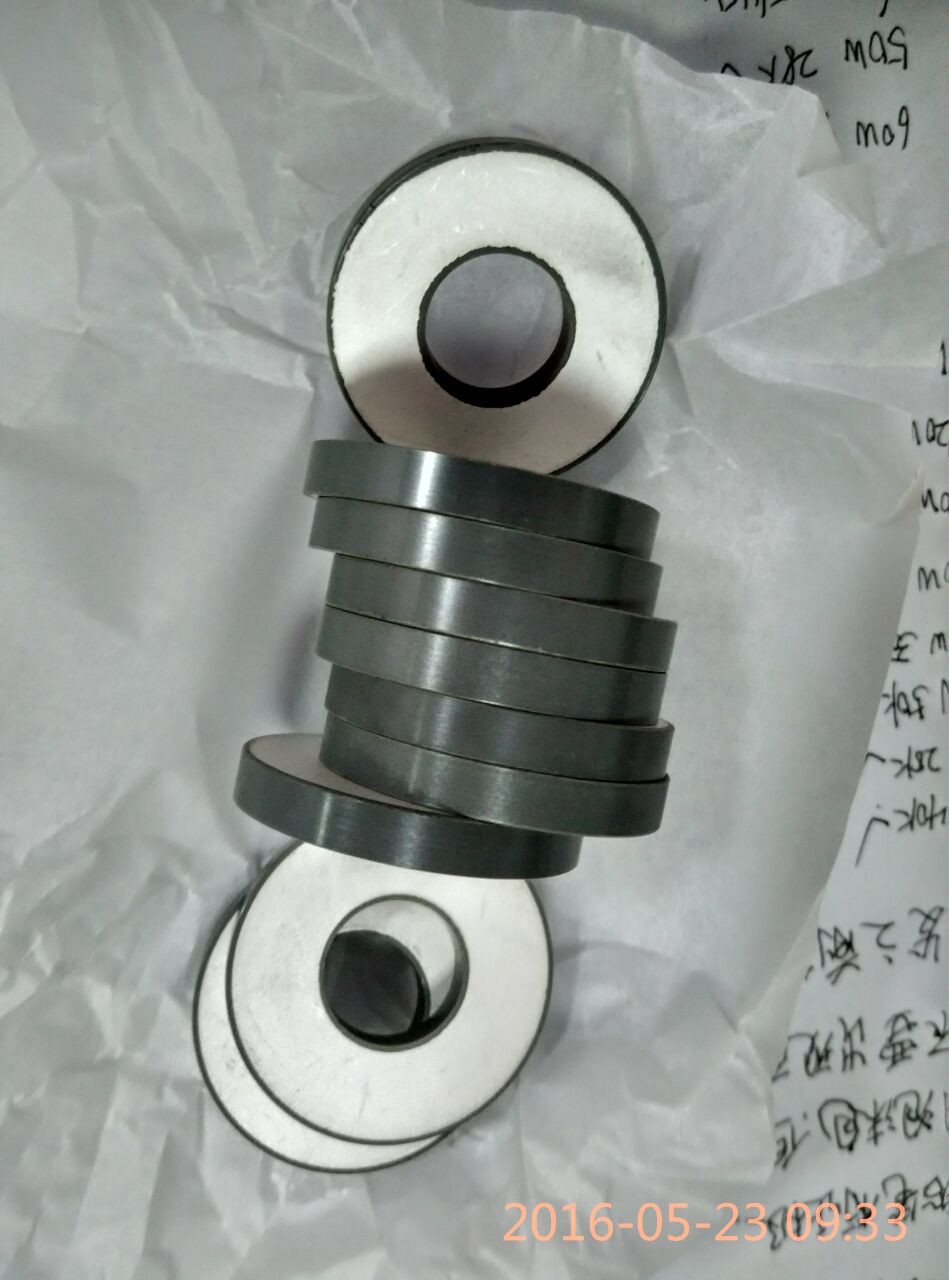

Weak Field Dissipation Ceramic 50x17x6.5mm Ring Disc Coupling Modulus
When the voltage is applied to the piezoelectric ceramic, it will produce mechanical deformation with the change of the voltage and frequency. On the other hand, when the vibration piezoelectric ceramic, it will produce a charge. Using this principle, when given by the two pieces of piezoelectric ceramic or a piece of piezoelectric ceramic and a metal piece a vibrator pressure, called bimorph element, an electrical signal is applied to will due to bending emit ultrasonic vibration. On the contrary, when ultrasonic vibration is applied to the piezoelectric element, an electrical signal is generated. Based on the above function, the piezoelectric ceramic can be used as an ultrasonic sensor.
Specifications
| Dimension(mm) |
Capacity C (pF) |
Weak Field Dissipatio Tgδ (12v) |
Strong Field Dissip ationTg δ (400v) |
Radial Frequency |
Reso nance Impedance |
Thick Fre quency |
Cou pling Modulus |
Qu ality Factor |
|
Φ10ｘΦ5 ｘ2 |
240±10% | ≤0.5% | ≤1.0% | 153±5% | ≤15 | 1020 | ≥45 | ≥800 |
|
Φ16ｘΦ8 ｘ4 |
340±10% | ≤0.5% | ≤1.0% | 95.8±5% | ≤20 | 512 | ≥45 | ≥800 |
|
Φ25ｘΦ10 ｘ4 |
935±10% | ≤0.5% | ≤1.0% | 65.5±5% | ≤15 | 512 | ≥45 | ≥800 |
|
Φ30ｘΦ10 ｘ5 |
1150±10% | ≤0.5% | ≤1.0% | 58.4±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ32ｘΦ15 ｘ5 |
1080±10% | ≤0.5% | ≤1.0% | 49.2±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ35ｘΦ15 ｘ5 |
1430±10% | ≤0.5% | ≤1.0% | 45.5±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ38ｘΦ15 ｘ5 |
1750±10% | ≤0.5% | ≤1.0% | 43.4±5% | ≤15 | 410 | ≥46 | ≥800 |
|
Φ40ｘΦ15 ｘ5 |
1970±10% | ≤0.5% | ≤1.0% | 42.8±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ42ｘΦ15 ｘ5 |
2200±10% | ≤0.5% | ≤1.0% | 40±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ42ｘΦ17 ｘ5 |
2110±10% | ≤0.5% | ≤1.0% | 38.8±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ45ｘΦ15 ｘ5 |
2580±10% | ≤0.5% | ≤1.0% | 38.1±5% | ≤15 | 410 | ≥46 | ≥800 |
|
Φ50ｘΦ17 ｘ5 |
3160±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ50ｘΦ17 ｘ6 |
2430±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 315 | ≥45 | ≥800 |
| Φ50ｘ3 | 5800±10% | ≤0.5% | ≤1.0% | 46±5% | ≤10 | 681 | ≥50 | ≥800 |
