Super Ultrasound Impedance Analyzer for Dynamic Inductance / Capacitance / Resistance

Super Ultrasound Impedance Analyzer for Dynamic Inductance / Capacitance / Resistance

Large Image :  Super Ultrasound Impedance Analyzer for Dynamic Inductance / Capacitance / Resistance

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $2000-4000
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.PER MONTH
Detailed Product Description

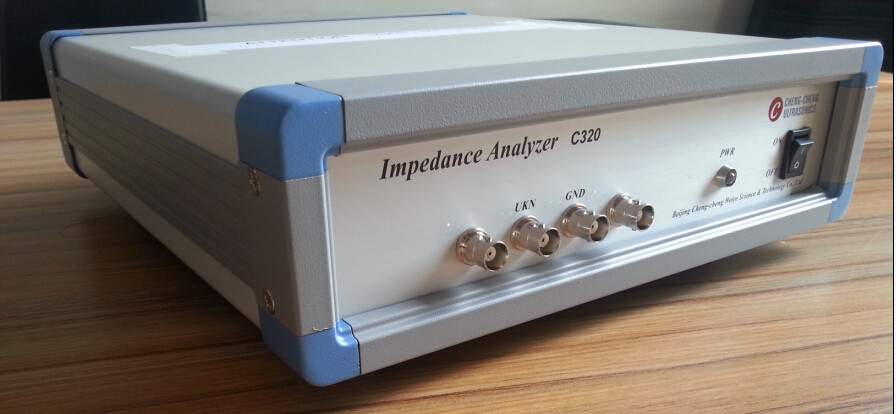

Super Ultrasound Impedance Analyzer For Dynamic Inductance / Capacitance / Resistance



Ultrasound of Dynamic Inductance and Dynamic Capacitance and Dynamic Resistance





Type

C220

C320

Frequency Range

1KHZ-500Khz

1Khz-1Mhz

Measurement Index

All parameter, graphics



Measurement Accuracy

< 1%

< 0.5%

Measurement Speed

10 second/piece(equivalent

to 600 scan dots)

5 second/piece(equivalent

to 600 scan dots)

Frequency Accuracy

±15ppm

±5ppm

Phase Resolution

0.15 degree

0.15 degree

Enviroment temperature

10-40 cº

10-40 cº

Impedance Range

1Ω~1MΩ

1Ω~1MΩ

Frequency Step

0.1Hz~any

0.1Hz~any

Application

Ultrasonic equipment testing,

ultrasonic cleaning,

ultrasonic welding,

ultrasonic medical

Inspection production line of

piezoelectric ceramic below 1MHz



Frequency Range: 1KHZ-500Khz

Min.Frequency Step: 0.1HZ

Measurement accuracy: < 1%

Measurement speed: 10 seconds per pieces(equivalent to 600 scan dots)

Frequency accuracy: ±15ppm

Phase Accuracy: 0.15 degree

Enviroment temperature: 10-40 cº

Impedance Range: 1Ω~1MΩ

Frequency step: 0.1Hz~any



Impedance Analyzer is characterized by: ease of use, indicators and graphics combination of parameters is accurate, low cost of production can be very strong guidance.

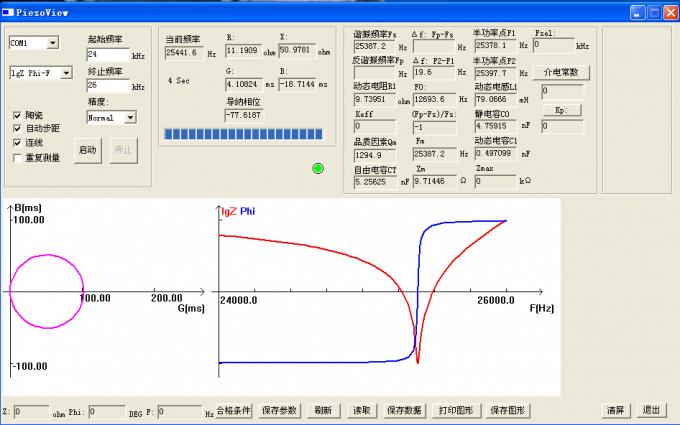

Of piezoelectric devices for the proper use of impedance measurement is a prerequisite for the device. For piezoelectric devices, through the impedance analyzer can be its main parameters, including: the resonant frequency Fs, the anti-resonant frequency Fp, half-power point of F1 and F2, the largest admittance Gmax, electrostatic capacity C0, dynamic reactor R1, dynamic capacitance C1, Dynamic inductor L1, free capacitor CT, the free dielectric constant, mechanical quality factor Qm, electromechanical coupling coefficient Keff , Kp, K31, K33, and piezoelectric devices can draw five characteristic curve (Nath of maps I, impedance characteristics map , polar coordinates map admittance, Impedance polar diagram, Logarithmic plot)



Super Ultrasound Impedance Analyzer for Dynamic Inductance / Capacitance / Resistance





Resonance Frequency: Fs

Half Power Frequency: F1 and F2

Maximum real admittance at Fs: Gmax

Dynamic Resistance: R1

Anti resonance frequency: Fp

Mechanical quality factor: Qm

Free capacitance: CT

Dynamic inductance: L1

Dynamic capacitance: C1

Static capacitance: Co

electromechanical coupling coefficient: Keff and Kp

Maximum real impedance at Fp: Zmax
