Durable Ultrasonic Frequency Impedance Analyzer Testing Piezoelectric Ceramic Discs

1PCS
MOQ
$2000-4000
Price
Durable Ultrasonic Frequency Impedance Analyzer Testing Piezoelectric Ceramic Discs
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

impedance instrument

,

ultrasonic cavitation meter

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.PER MONTH
Product Description



Durable Ultrasonic Frequency Impedance Analyzer Testing Piezoelectric Ceramic Discs



Mechanical Quality Factor and Free Capacitance Ultrasonic Impedance Analyzer



Durable Ultrasonic Frequency Impedance Analyzer Testing Piezoelectric Ceramic Discs 0



Type

C220

C320

Frequency Range

1KHZ-500Khz

1Khz-1Mhz

Measurement Index

All parameter, graphics



Measurement Accuracy

< 1%

< 0.5%

Measurement Speed

10 second/piece(

equivalent to 600 scan dots

)

5 second/piece(equivalent to 600 scan dots

)

Frequency Accuracy

±15ppm

±5ppm

Phase Resolution

0.15 degree

0.15 degree

Enviroment temperature

10-40 cº

10-40 cº

Impedance Range

1Ω~1MΩ

1Ω~1MΩ

Frequency Step

0.1Hz~any

0.1Hz~any

Application

Ultrasonic equipment testing,

ultrasonic cleaning,

ultrasonic welding,

ultrasonic medical

Inspection production line of piezoelectric ceramic below 1MHZ

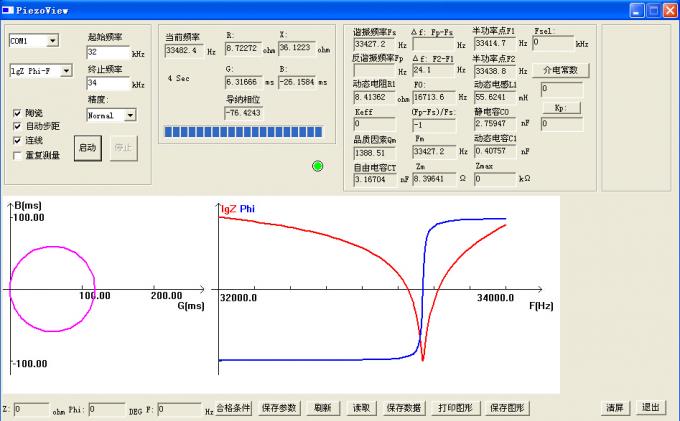

Durable Ultrasonic Frequency Impedance Analyzer Testing Piezoelectric Ceramic Discs 1



Resonance Frequency: Fs

Half Power Frequency: F1 and F2

Maximum real admittance at Fs: Gmax

Dynamic Resistance: R1

Anti resonance frequency: Fp

Mechanical quality factor: Qm

Free capacitance: CT

Dynamic inductance: L1

Dynamic capacitance: C1

Static capacitance: Co

electromechanical coupling coefficient: Keff and Kp

Maximum real impedance at Fp: Zmax



Service

Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.


Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional

 manufacturer



in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
