High Efficiency Piezoelectric Ultrasonic Transducer Low Calorific Value
Description:
1. The piezoelectric ceramic chip adopts imported parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.
Specifications:
| NO. | Type | Length (mm) |
Weigh (g) |
Frequency (KHz) |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power (W) |
| 1 | CCH-6845D-20LA PZT-8 | 95 | 910 | 20 | 20-40 | 5000 | 100 |
| 2 | CCH-6850D-28LB PZT-4 | 67 | 666 | 28 | 10--25 | 7000 | 120 |
| 3 | CCH-6845D-28LA PZT-8 | 66 | 625 | 28 | 10--25 | 5000 | 100 |
| 4 | CCH-6845D-28LB PZT-4 | 66 | 624 | 28 | 10--25 | 6600 | 100 |
| 5 | CCH-5838D-25LB PZT-4 | 76 | 524 | 25 | 10--25 | 5400 | 60 |
| 6 | CCH-5938D-25LA PZT-8 | 65 | 525 | 25 | 10--25 | 3800 | 60 |
| 7 | CCH-5938D-28LB PZF-4 | 66 | 510 | 28 | 10--25 | 3800 | 60 |
| 8 | CCH-4535D-28ZB PZT-4 |
82 | 425 | 28 | 10--25 | 4100 | 50 |
| 9 | CCH-6845D-30L PZT-8 |
61 | 550 | 30 | 10--25 | 5000 | 100 |
| 10 | CCH-4838D-33LA PZT-8 | 58 | 420 | 33 | 10--25 | 3800 | 60 |
| 11 | CCH-5038D-40LA PZT-8 | 54 | 300 | 40 | 10--25 | 3800 | 60 |
| 12 | CCH-4535D-40LB PZT-4 | 57 | 300 | 40 | 10--25 | 4100 | 50 |
| 13 | CCH-4838D-40ZB PZT-8 |
56 | 310 | 40 | 10--25 | 3800 | 60 |
| 14 | CCH-4838S-50LA PZT-4 | 40 | 160 | 50 | 30-60 | 2100 | 30 |
| 15 | CCH-3830D-54LA PZT-4 | 36 | 135 | 54 | 10--25 | 3200 | 35 |
| 16 | CCH-4938D-68ZB PZT-8 | 79 | 535 | 68 | 15-30 | 3800 | 60 |
| 17 | CCH-5250D-68ZB PZT-4 | 67 | 588 | 68 | 15-30 | 7000 | 120 |
| 18 | CCH-4038D-80ZB PZT-4 | 53 | 290 | 80 | 15-30 | 5400 | 60 |
| 19 | CCH-4838D-120ZB PZT-4 | 57 | 255 | 120 | 15-30 | 5400 | 60 |
| 20 | CCH-4535D-135ZB PZT-4 | 28 | 215 | 135 | 15-30 | 4200 | 50 |
| 21 | CCH-5038D-25(40)LB PZT-8 | 65 | 442 | 25 and 40 | 15-30 | 3800 | 60 |
| 22 | CCH-3830D-200LA PZT-4 | 42 | 135 | 200 | 15-30 | 3200 | 30 |
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Feature
1. Small machinery loss,
2. High efficiency electricity
3. Sound transfer,
4. Big swing and less heat.
5. Good construction
6. Easy to installation
7. High reliablity

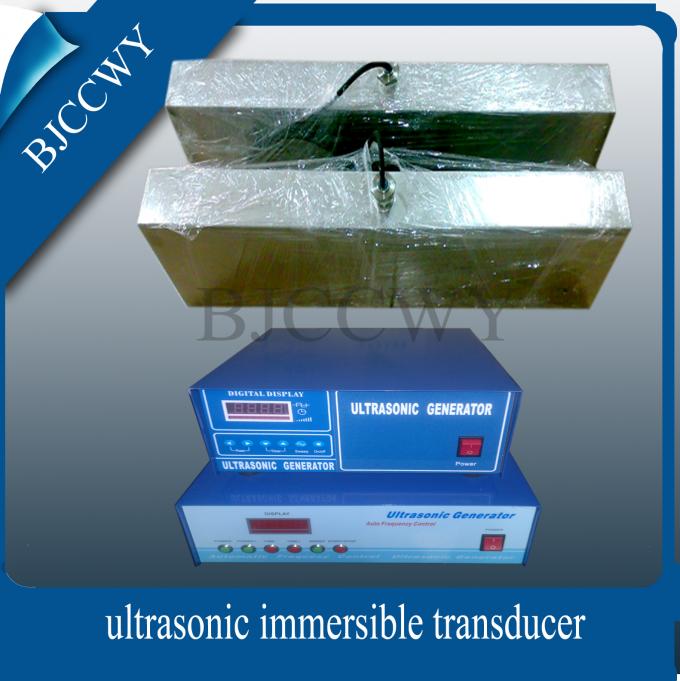

Application of Ultrasonic Immersible Transducer
immersible ultrasonic transducers This series of products is suitable to cleaning work pieces of various industries;such as plating components cleaning before plating,electronic,hardware machinery parts,clock and watch parts,semiconductor sillcon chips,glass vessels,bijouterie,spectacle frame, etc.
Pre-plating cleaning for parts to be plated, oil and dirt removing for metal mechanical. Parts, cleaning semi-conductor Si-chips, spectacle frames and glass vessels.
Lens, sunglasses, short-sighted mirror and prism, the microscope, camera, glass equipment, etc.
electroplating accessories, watch & clock accessories, metal accessories, terylene filter core, semiconductor silicon, tools, lens, spectacle frames, jewelry and glass containers...etc.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH

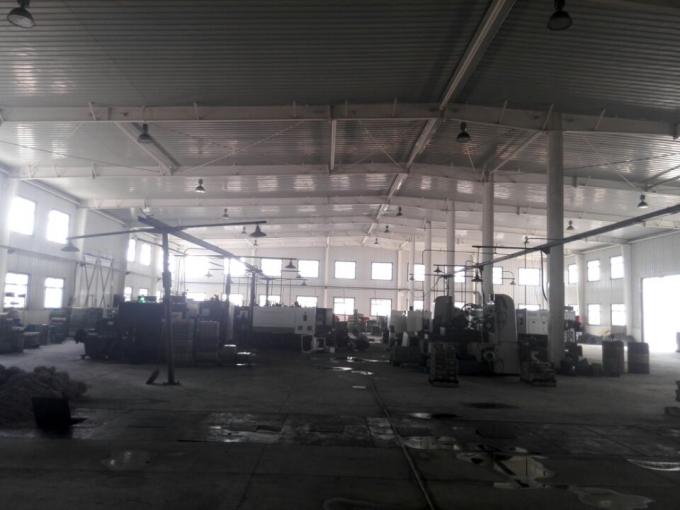

Company pictures:
