Ultrasonic Grinding Multi Frequency Piezoelectric Ultrasonic Generator

Ultrasonic Grinding Multi Frequency Piezoelectric Ultrasonic Generator

Large Image :  Ultrasonic Grinding Multi Frequency Piezoelectric Ultrasonic Generator

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $300-$600
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description

Ultrasonic Grinding Multi Frequency Piezoelectric Ultrasonic Generator

50khz-200khz 600w high frequency ultrasonic generator for cleaning equipment



50khz-200khz 600w high frequency ultrasonic generator:
In harmony with the global ultrasonic industry and with over ten years of experience in researching and using ultrasonic products, we depend on a special power source for ultrasonic cleaners, which adopt advanced microcomputer control techniques and a bran - new ideas in circuit design and is widely applied in the ultrasonic cleaning industry.


Description

50khz-200khz 600w high frequency ultrasonic generator:
The control box adopts advanced techniques, like separately-excited circuits, controlled by microcomputer,  automatic frequency tracking and frequency sweeping, etc. Compared with the traditional control box, it has better performance, more stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of a transducer to the maximum. The automatic tracking of the operating frequencies optimizes output matching, strengthens power and raises efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time-wash off the dirty uncovered by ultrasonic waves from the surface of working pieces and thus attain faster and more thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With  a computer fault location and display system, its operation and maintenance are more convenient.


Applications

widely used in ultrasonic cleaning equipment


Specifications


50khz-200khz 600w high frequency ultrasonic generator:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:


Type

X4-A-I

X4-A -II

X4-A-III

Driven power

600W-900W

900W-1500W

1500W-2100W

Power Control
(Adjustable)

0-100%

0-100%

0-100%

Working Frequency

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

Working voltage

AC220V 10% 50HZ

AC220V 10% 50HZ

AC220V 10% 50HZ

Max.numbers of
transducers

12-18pcs 60W

12-30pcs 60W

12-42pcs 60W

Rated Current
per transducer

0.1-0.17A

0.1-0.17A

0.1-0.17A

Output  Current
range

1-3A

1-4.5A

1-6A

Time Control
Range

0-59’59”

0-59’59”

0-59’59”

Environment
temperature

0-40℃

0-40℃

0-40℃

Relative Humidity

40%-90%

40%-90%

40%-90%

Net  weight

10KG

11KG

12KG

Dimension (mm)

390×350×130

390×350×130

390×350×130


Service
Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.

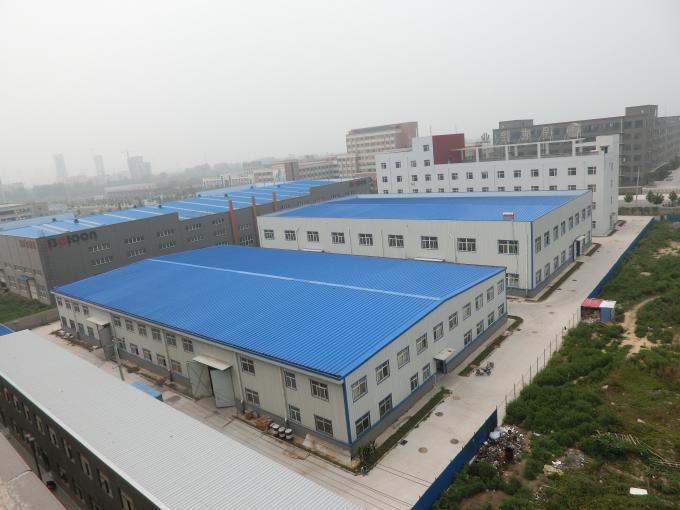

Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers,
ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new
product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an
easy task. This product has been widely used in distillation, mix and mill for various chemical procedures
 and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy.
Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
