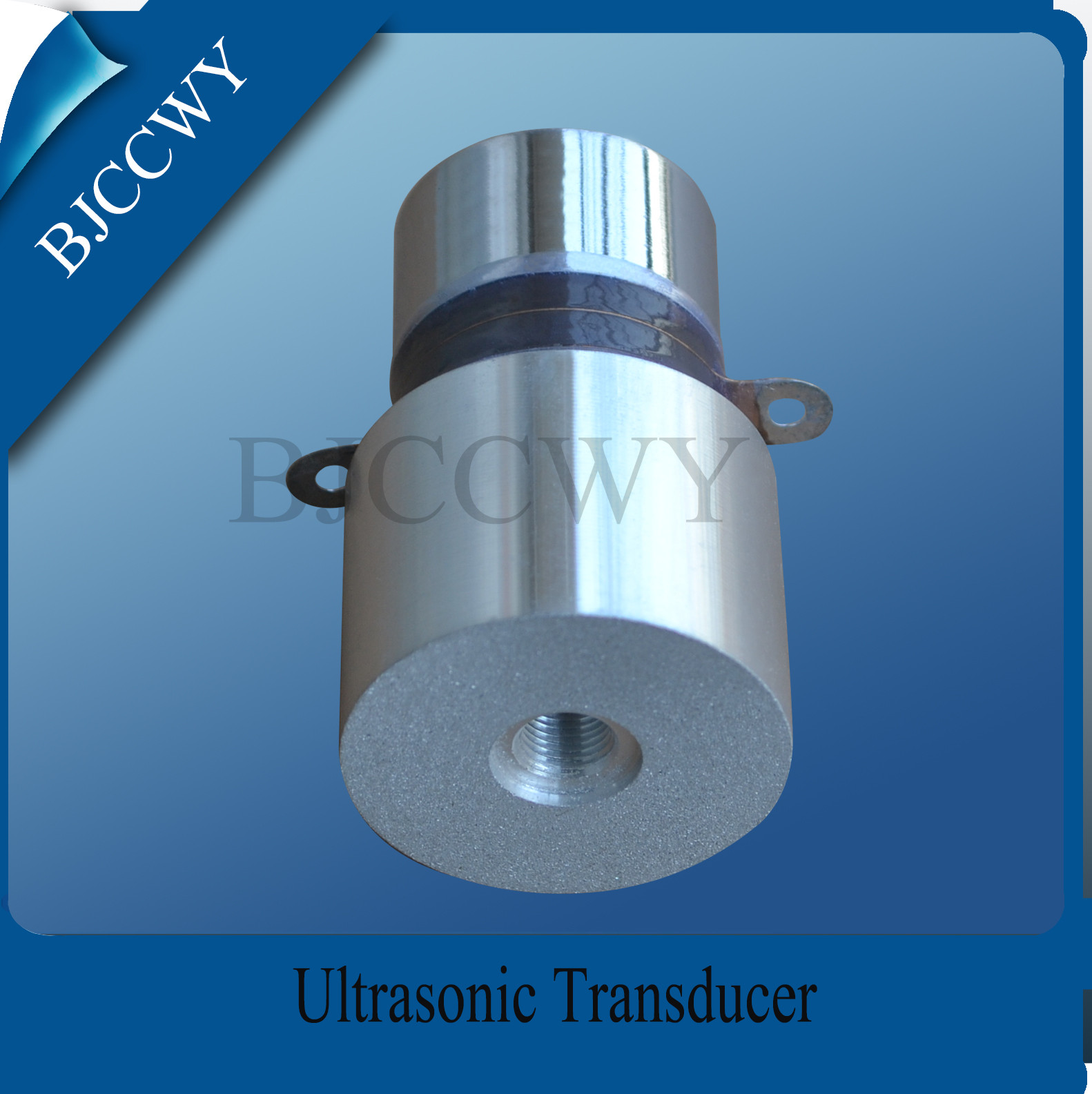

Custom Piezoelectric Ultrasonic Cleaning Transducer High Frequency

1PCS
MOQ
$6--$15
Price
Custom Piezoelectric Ultrasonic Cleaning Transducer High Frequency
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

waterproof ultrasonic transducer

,

40khz ultrasonic transducer

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

Custom Piezoelectric Ultrasonic Cleaning Transducer High Frequency





Quick Detail of 40khz60w ultrasonic cleaning transducer:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.


Description of 40khz60w ultrasonic cleaning transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.

Applications of 40khz60w ultrasonic cleaning transducer:

widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:

Custom Piezoelectric Ultrasonic Cleaning Transducer High Frequency 0

Custom Piezoelectric Ultrasonic Cleaning Transducer High Frequency 1

Specifications of 40khz60w ultrasonic cleaning transducer:





Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-4838D-40ZB

PZT-8

56

310

40

10-25

3800

60




Competitive Advantage of 40khz60w ultrasonic cleaning transducer:

◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
