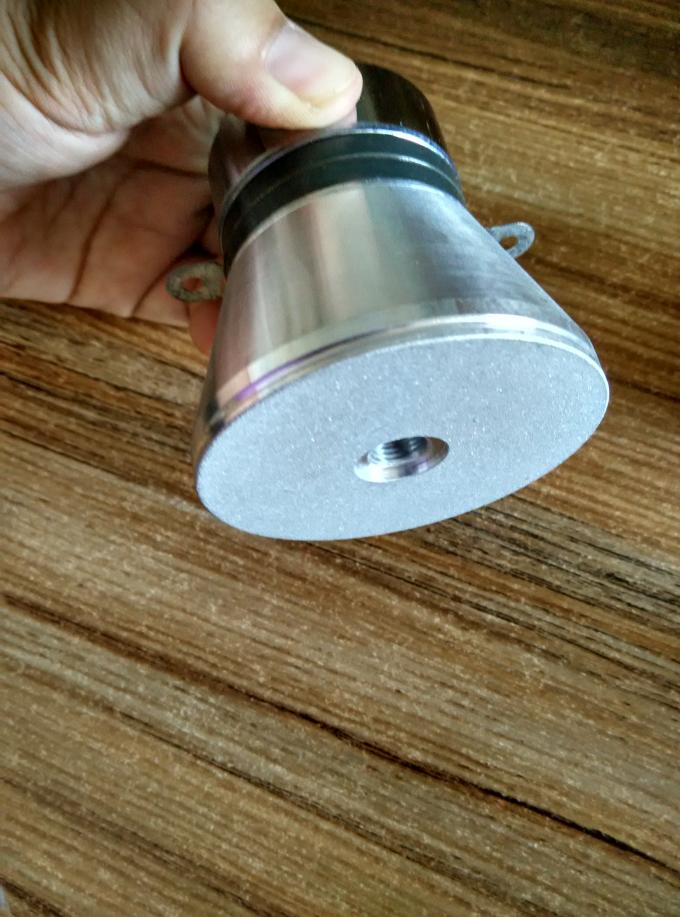

Piezo Ultrasonic Cleaning Transducer , Waterproof Ultrasonic Transducer
Quick Detail:
High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.
Description:
Features
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Applications:
widely used in ultrasonic welding machine
Specifications:
|
Type |
Full-length(mm) |
Joint Bolt(mm) |
Frequency(KHz) |
Resonance Impedance(Ω) |
Capacity(pF) |
Input Power (W) |
|
CCH-7070F-15Z P8
|
153
|
M20×1.5
|
15
|
15
|
13000
|
2500
|
|
CCH-6060F-15Z P8
|
167
|
M20×1.5
|
15
|
10
|
9500
|
2000
|
|
CCH-5050F-15Z P4
|
171
|
M18×1.5
|
15
|
12
|
12500
|
1500
|
|
CCH-6060F-20Z P4
|
118
|
M20×1.5
|
20
|
15
|
15000
|
1800
|
|
CCH-5555F-20Z P8
|
128
|
M18×1
|
20
|
10
|
11000
|
2000
|
|
CCH-5050F-20Z P8
|
124
|
M18×1.5
|
20
|
12
|
10000
|
1500
|
|
CCH-4040F-20ZL P8
|
112
|
1/2-20 UNF
|
20
|
15
|
9000
|
700
|
|
CCH-4040F-20ZL-P P8
|
133
|
1/2-20 UNF
|
20
|
15
|
10000
|
900
|
|
CCH-5050D-20D-P P8
|
121
|
M18×1.5
|
20
|
15
|
6000
|
600
|
|
CCH-3030F-30Z P8
|
77
|
M10×1.5
|
30
|
5
|
5500
|
500
|
|
CCH-3030D-28Z P4
|
92.1
|
M10×1
|
28
|
20
|
3000
|
200
|
|
CCH-2525D-28Z P8
|
91
|
M8×1
|
28
|
25
|
2200
|
100
|
|
CCH-3838D-28ZL P8
|
94
|
1/2-20 UNF
|
28
|
20
|
4000
|
250
|
|
CCH-3850L-20D P8
|
128
|
1/2-20 UNF
|
20
|
10
|
20000
|
2000
|
|
CCH-3840L-20D P8
|
124
|
1/2-20 UNF
|
20
|
10
|
16000
|
1500
|
|
CCH-3850F-20D P8
|
128
|
1/2-20 UNF
|
20
|
10
|
12500
|
1300
|
|
CCH-3850F-20DL P8
|
132
|
1/2-20 UNF
|
20
|
10
|
11000
|
1500
|
|
CCH-3840F-20D P8
|
123
|
1/2-20 UNF
|
20
|
10
|
9500
|
900
|
|
CCH-5060F-15D P4
|
171
|
M18×1.5
|
15
|
12
|
10000
|
2000
|
|
CCH-2525D-35ZL P8
|
71
|
M8×1
|
35
|
25
|
2200
|
100
|
|
CCH-2020D-38ZL P8
|
66
|
M8×1.25
|
38
|
40
|
1200
|
100
|
|
CCH-2830D-38DL P4
|
65
|
M8×1
|
38
|
14
|
3300
|
200
|
Competitive Advantage:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
