Wrap Edge Piezo Ceramic Plate Positive And Negative Electrode In Same Side

1PCS
MOQ
Wrap Edge Piezo Ceramic Plate Positive And Negative Electrode In Same Side
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Piezoelectric Ceramics
Application: Ultrasonic Application
Shape: Round, Ring, Or Tube
Standard: CE ROSH TUV
Material: P4, P8 Or P5 Etc
Size: Customized
Name: Ring Or Round Shape Piezo Ceramic Plate Size Customized P4 P5 P8
Keyword: Piezo Ceramic Element
High Light:

wrap edge piezo ceramic plate

,

same side electrode piezo ceramic plate

,

wrap edge piezoelectric ceramic plate

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

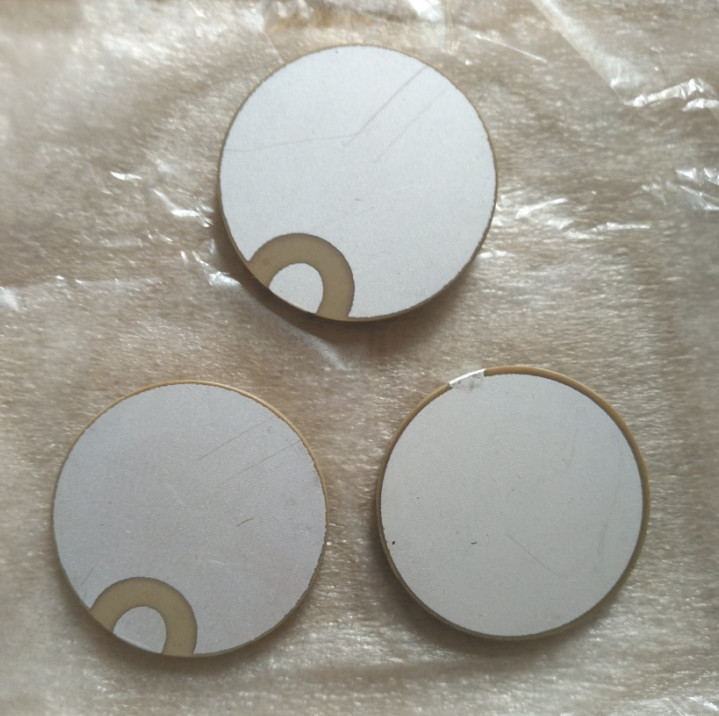

Wrap Edge Piezo Ceramic Positive and Negative Electrode in the Same side









The piezoelectric element has piezoelectric effect, and the piezoelectric effect is reversible. The piezoelectric effect is applied stress in a particular direction along certain crystal, crystal polarization change, and change is proportional to the called positive piezoelectric effect, on the contrary and stress variables, an electric field on the crystal strain and strain resulted in proportional to the electric field is called inverse piezoelectric effect. Because of the piezoelectric effect, piezoelectric element can force, pressure, acceleration, temperature, quality and other non electrical quantity into electrical quantity according to certain rules, all kinds of sensors can be used to produce a detection, to achieve certain non electrical quantity conversion, control and transmission function, in the military and civil widely application. The piezoelectric sensor is the direct use of piezoelectric effect and inverse piezoelectric effect of piezoelectric material, the former is charge by the piezoelectric element generated by reflecting the size or change of measurement, which is measured by changes reflect changes in the piezoelectric element vibration or deformation.



Piezoelectric ceramic wafer is a simple and lightweight electrical device. It is widely used because of its high sensitivity, no magnetic field spreading, no copper wire and magnet, low cost, low power consumption, and easy mass production. Suitable for the transmission and reception of ultrasonic and infrasonic waves, a relatively large area of piezoelectric ceramics can also be used to detect pressure and vibration. The working principle is to use the reversibility of the piezoelectric effect to apply audio voltage on it to emit sound



Specifications





Dimension(mm)

Capacity

(pF)

Weak

 Field

Dissipatio

Tgδ (12v)

Strong

Field

Dissip

ationTg δ

 (400v)

Radial

Frequency
Fr(KHz)



Reso

nance

Impedance
Zm (Ω )

Thick

Fre

quency
Ft (KHz)

Cou

pling

Modulus
Kr (%)

Qu

ality

Factor
Qm

Φ10xΦ5

x2

240±10% ≤0.5% ≤1.0% 153±5% ≤15 1020 ≥45 ≥800

Φ16xΦ8

x4

340±10% ≤0.5% ≤1.0% 95.8±5% ≤20 512 ≥45 ≥800

Φ25xΦ10

x4

935±10% ≤0.5% ≤1.0% 65.5±5% ≤15 512 ≥45 ≥800

Φ30xΦ10

x5

1150±10% ≤0.5% ≤1.0% 58.4±5% ≤15 410 ≥45 ≥800

Φ32xΦ15

x5

1080±10% ≤0.5% ≤1.0% 49.2±5% ≤15 410 ≥45 ≥800

Φ35xΦ15

x5

1430±10% ≤0.5% ≤1.0% 45.5±5% ≤15 410 ≥45 ≥800

Φ38xΦ15

x5

1750±10% ≤0.5% ≤1.0% 43.4±5% ≤15 410 ≥46 ≥800

Φ40xΦ15

x5

1970±10% ≤0.5% ≤1.0% 42.8±5% ≤15 410 ≥45 ≥800

Φ42xΦ15

x5

2200±10% ≤0.5% ≤1.0% 40±5% ≤15 410 ≥45 ≥800

Φ42xΦ17

x5

2110±10% ≤0.5% ≤1.0% 38.8±5% ≤15 410 ≥45 ≥800











Service

Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.


Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional  manufacturer in ultrasonic transducers,

ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a

new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning

into an easy task. This product has been widely used in distillation, mix and mill for various chemical

procedures and has received much praise from our customers.

Payment:
We accept paypal or T/T, western union etc.

Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy.

Or as your requested by sea or other express, according to your quantity.

Certification:
CE, ISO9001, ROSH
