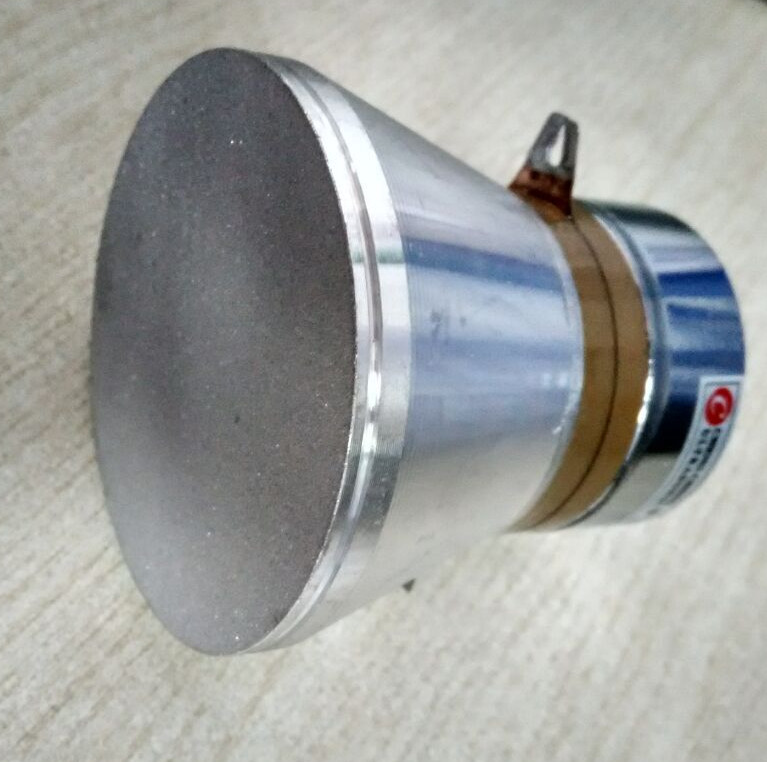

100w 28k Piezo Ultrasonic Transducer For Cleaning without hole at the bottom
Description:
Ultrasonic vibration transducer is one kind of piezoelectric transducers. It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The ultrasonic vibration transducer is widely used in vibrating screen equipment factory (so now the vibrating equipment can have both the mechanical and ultrasonic vibration).
The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.
Specifications:
| Type | Length(mm) | Weight (g) | Frequency(KHz)±4% |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power(W) |
|
CCH-7145D-20LA PZT-8 |
94
|
900
|
20
|
≤20
|
5200
|
100
|
| CCH-6645D-25LB PZT-4 |
77
|
717
|
25
|
≤20
|
6800
|
100
|
| CCH-6650D-28LB PZT-4 |
69
|
746
|
28
|
≤20
|
7900 |
120
|
| CCH-6645D-28LB PZT-8 |
66
|
625
|
28
|
≤20
|
5200
|
100
|
| CCH-6645D-28LB PZT-4 |
66
|
614
|
28
|
≤20
|
6800
|
100
|
| CCH-6645D-30L PZT-8 |
64
|
551
|
30
|
≤20
|
5200 |
100
|
| CCH-5938D-25LB PZT-4 |
77
|
530
|
25
|
≤20
|
4900
|
60
|
| CCH-5938D-28LB PZT-8 |
68
|
470
|
28
|
≤20
|
3700
|
60
|
| CCH-4535D-28ZB PZT-4 |
73
|
407
|
28
|
≤20
|
3950 |
50
|
| CCH-4838D-33LB PZT-8 |
62
|
420
|
33
|
≤20
|
4700
|
60
|
