20K 100W TUV Ultrasonic Circuit Board For Cleaner
Features Gallery Product Description Request A Quote
Features
Specifications
Working Frequency:: 20K- 80KHz
Time Control:: 0--59'59"
Relative Humidity:: 40%-90%
Range Of Power Control:: 0-100% Digital Control And Adjustment 16 Grades
Internal Over Temperature Protection:: 65C
Power: 100W,200W, 300W
High Light:

tuv ultrasonic circuit board

,

20k ultrasonic circuit board

,

100w ultrasonic cleaner circuit board

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description



Ultrasonic Circuit Board for Cleaner



Detail


Ultrasound power source is commonly referred to as ultrasonic generator, ultrasonic generator. Its role is to convert electrical energy to match the ultrasonic transducer high-frequency alternating current signal. From the amplifier circuit form, you can use the linear amplifier circuit and the switching power supply circuit, high-power ultrasonic power conversion efficiency from the general consider switching power supply circuit form. Linear power also has its own unique range of applications. Its advantage is that it can not be strictly circuit matching requirements, allowing continuous rapid changes in operating frequency. From the current situation in the ultrasound industry, the ultrasound is divided into self-excited and it excited power supply.


Description

The control box adopts advanced techniques, like separately - excited circuits, controlled by microcomputer,  automatic frequency tracking and frequency sweeping, etc. Compared with the traditional control box, it has better performance, more stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of a transducer to the maximum. The automatic tracking of the operating frequencies optimizes output matching, strengthens power and raises efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time-wash off the dirty uncovered by ultrasonic waves from the surface of working pieces and thus attain faster and more thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With  a computer fault location and display system, its operation and maintenance are more convenient.





Type

300W

Driven power

300W

Power Control
(Adjustable)

0-100%

Working Frequency

25KHZ-40KHZ

Working voltage

AC220V
10% 50HZ

Max.numbers of
transducers

5pcs 60W

Rated Current
per transducer

0.1-0.17A

Output  Current
range

1-3A

Time Control
Range

0-59’59”

Environment
temperature

0-40℃

Relative Humidity

40%-90%

Net  weight

1KG

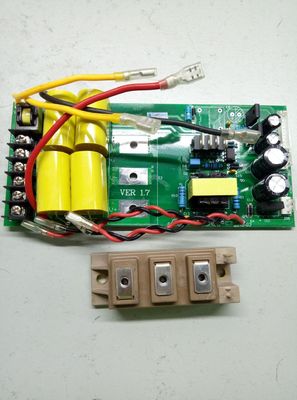

 20K 100W TUV Ultrasonic Circuit Board For Cleaner 0
