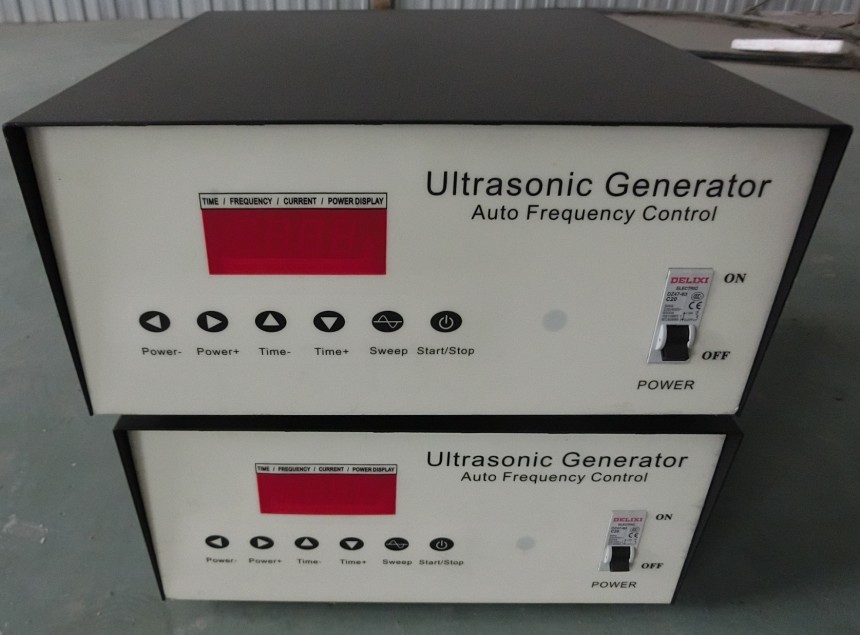

CE 28KHz Ultrasonic Frequency Generator Driving Ultrasonic Cleaning Transducers

1PCS
MOQ
CE 28KHz Ultrasonic Frequency Generator Driving Ultrasonic Cleaning Transducers
Features Gallery Product Description Request A Quote
Features
Specifications
Working Frequency:: 28KHz -40KHz
Time Control:: 0--59'59"
Relative Humidity:: 40%-90%
Range Of Power Control:: 0-100% Digital Control And Adjustment 16 Grades
Internal Over Temperature Protection:: 65C
Outer Size:: 160x360x300mm
High Light:

28KHz Ultrasonic Frequency Generator

,

28KHz Ultrasonic cleaning Generator

,

CE Ultrasonic Frequency Generator

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description



Ultrasonic Cleaning Generator Driving Ultrasonic Cleaning Transducers





Description

The control box adopts advanced techniques, like separately - excited circuits, controlled by microcomputer,  automatic frequency tracking and frequency sweeping, etc. Compared with the traditional control box, it has better performance, more stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of a transducer to the maximum. The automatic tracking of the operating frequencies optimizes output matching, strengthens power and raises efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time-wash off the dirty uncovered by ultrasonic waves from the surface of working pieces and thus attain faster and more thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With  a computer fault location and display system, its operation and maintenance are more convenient.

Type

X4-A-I

X4-A -II

X4-A-III

X4-A-IV

X4-M-V

Driven power

600W-900W

900W-1500W

1500W-2100W

2100W-2700W

3000W

Power Control
(Adjustable)

0-100%

0-100%

0-100%

0-100%

0-100%

Working Frequency

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

25KHZ-40KHZ

Working voltage

AC220V
10% 50HZ

AC220V
10% 50HZ

AC220V
10% 50HZ

AC220V
10% 50HZ

AC220V
10% 50HZ

Max.numbers of
transducers

12-18pcs 60W

12-30pcs 60W

12-42pcs 60W

12-54pcs 60W

12-60pcs 60W

Rated Current
per transducer

0.1-0.17A

0.1-0.17A

0.1-0.17A

0.1-0.14A

0.1-0.14A

Output  Current
range

1-3A

1-4.5A

1-6A

1-7A

1-7.5A

Time Control
Range

0-59’59”

0-59’59”

0-59’59”

0-59’59”

0-59’59”

Environment
temperature

0-40℃

0-40℃

0-40℃

0-40℃

0-40℃

Relative Humidity

40%-90%

40%-90%

40%-90%

40%-90%

40%-90%

Net  weight

10KG

11KG

12KG

12KG

12KG

Dimension (mm)

390×350×130

390×350×130

390×350×130

390×350×130

390×350×130




CE 28KHz Ultrasonic Frequency Generator Driving Ultrasonic Cleaning Transducers 0
