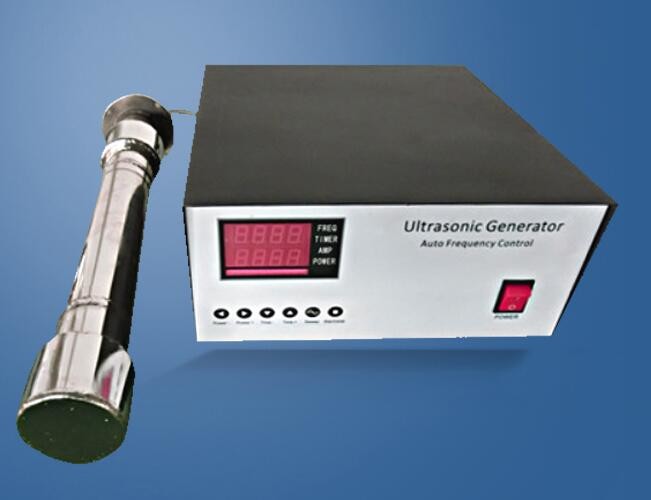

Industry 1000w 27khz Ultrasonic Transducer Generator Equipment

1pc
MOQ
2800-3500 USD
Price
Industry 1000w 27khz Ultrasonic Transducer Generator Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Frequency: 25-27K
Material: Aluminum, Stainless Steel
Application: Ultrasonic Cleaning,Emulsification, Separation
Product Name: Tubular Transducer Equipment
Power(w): 1000-1500W
High Light:

industry ultrasonic transducer generator

,

1000w ultrasonic transducer generator

,

27khz ultrasonic transducer generator

Basic Infomation
Place of Origin: China
Brand Name: BJCCWY
Certification: ISO9001, CE, RoHs
Model Number: TB26
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 1000
Product Description





Ult           Industry Ultrasonic Tube Transducer and Generator Equipment



              Since cavitation occurs on all outside areas of the tube, ultrasonic energy distribution in the tank is very uniform, with an excellent cleaning effect.

              The output power of the tubular transducer equipment is not affected by the depth of solution, capacity of bath, variation of solution

              temperature   and so on.

              Thanks to structural tubular equipment, the application range is wider than a conventional transducer equipment.

              It is best matched to vacuum and high pressure cleaning and chemical processing.

              It has one and half to two times the life can be maintained compare with conventional transducer equipment.

              The round shape makes it possible to install very simply in every place so that the designing of the bath

               is simple.

              The tube structure guarantees watertightness.





Tubular Equipment

Type

Tubular Transducer

Type

Frequency

(KHz)

Ultrasound Output(W)

A Length

(mm)

Diameter

(mm)

Capacity

(pF±10%)

TB26-5 TB26-45L2-458 25-27 1000 458 Φ73/55 68000
TB26-4 TB26-45L2-624 25-27 1100 624 Φ73/55 68000
TB26-3 TB26-45L2-790 25-27 1200 790 Φ73/55 68000
TB26-2 TB26-45L2-957 25-27 1300 957 Φ73/55 68000
TB26-1 TB26-45L2-1123 25-27 1500 1123 Φ73/55 68000
TB26-5-2 TB26-45L4-910 25-27 2000 910 Φ73/55 132000
TB37-1 TB37-40D-295 36-38 300 295 Φ54/30 3600





               Application

               It is widely used in the fields of ultrasonic cleaning, biochemistry, food, chemical and pharmaceutical industry.

               In biochemistry industry, the tubular transducer equipment can be used for emulsification, separation, homogenization,

               refining and catalyzing reaction and it can increase production capacity. The tubular transducer equipment plays

               an important role in the even stirring of homogenates in food processing. In the chemical industry,

               it is suitable for cleaning pipeline, tanks and kettles. The catalyzing effect of ultrasonic is quite obvious

               when the tubular transducer equipment used in the refinement of scavenge oil and palm oil to biodiesel,

              as the efficiency can be improved more than tenfold. Therefore, it will have expansive applications in the petro-chemical industry.
