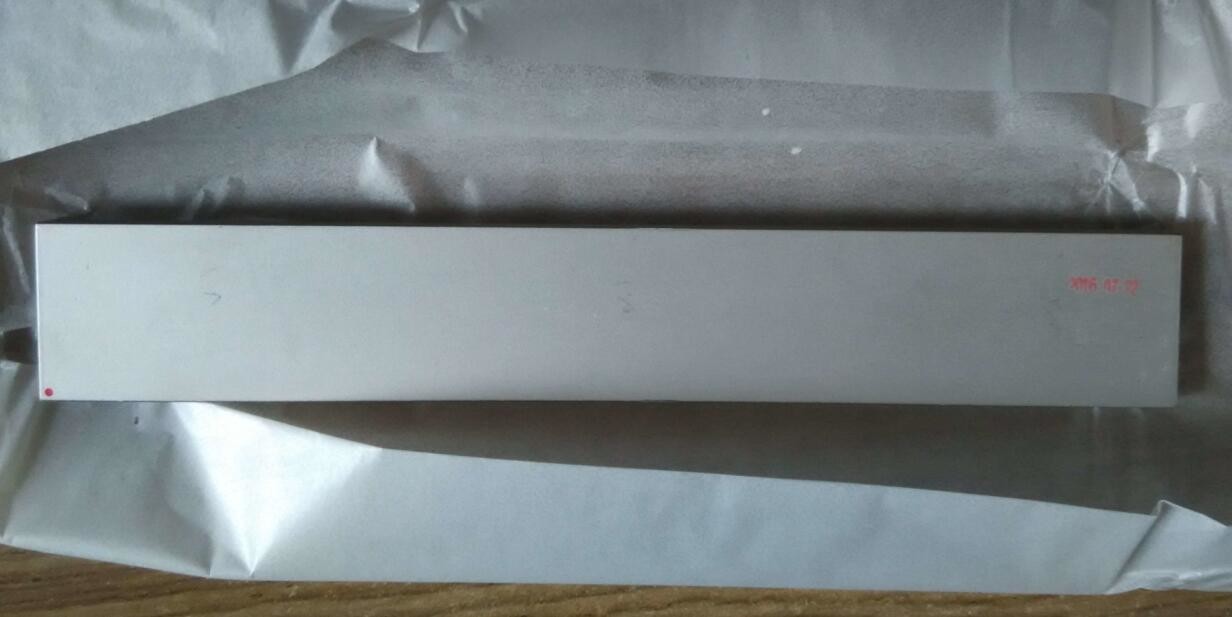

Strip Shape Piezo Ceramics Size OEM
The piezoelectric sensor is the direct use of piezoelectric effect and inverse piezoelectric effect of piezoelectric material, the former is charge by the piezoelectric element generated by reflecting the size or change of measurement, which is measured by changes reflect changes in the piezoelectric element vibration or deformation.
Specifications
| Dimension(mm) |
Capacity C (pF) |
Weak Field Dissipatio Tgδ (12v) |
Strong Field Dissip ationTg δ (400v) |
Radial Frequency |
Reso nance Impedance |
Thick Fre quency |
Cou pling Modulus |
Qu ality Factor |
|
Φ38ｘΦ15 ｘ5 |
1750±10% | ≤0.5% | ≤1.0% | 43.4±5% | ≤15 | 410 | ≥46 | ≥800 |
|
Φ40ｘΦ15 ｘ5 |
1970±10% | ≤0.5% | ≤1.0% | 42.8±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ42ｘΦ15 ｘ5 |
2200±10% | ≤0.5% | ≤1.0% | 40±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ42ｘΦ17 ｘ5 |
2110±10% | ≤0.5% | ≤1.0% | 38.8±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ45ｘΦ15 ｘ5 |
2580±10% | ≤0.5% | ≤1.0% | 38.1±5% | ≤15 | 410 | ≥46 | ≥800 |
|
Φ50ｘΦ17 ｘ5 |
3160±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 410 | ≥45 | ≥800 |
|
Φ50ｘΦ17 ｘ6 |
2430±10% | ≤0.5% | ≤1.0% | 34.8±5% | ≤15 | 315 | ≥45 | ≥800 |
| Φ50ｘ3 | 5800±10% | ≤0.5% | ≤1.0% | 46±5% | ≤10 | 681 | ≥50 | ≥800 |
Competitive Advantage
Features
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Service
Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers,
ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a
new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning
into an easy task. This product has been widely used in distillation, mix and mill for various chemical
procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy.
Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
