Ultrasonic Piezoelectric Ceramic Plate Positive And Negative Electrode

1PCS
MOQ
Ultrasonic Piezoelectric Ceramic Plate Positive And Negative Electrode
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Ultrasonic Application
Size: As Customer's Request
Feature: Good Heat Resistance
Material: P4, P8 Or P5 Etc
Shape: Tube, Ring, Round Plate Etc
Packing: Protection Carton
High Light:

piezo electric ceramic

,

piezoelectric ceramics

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description

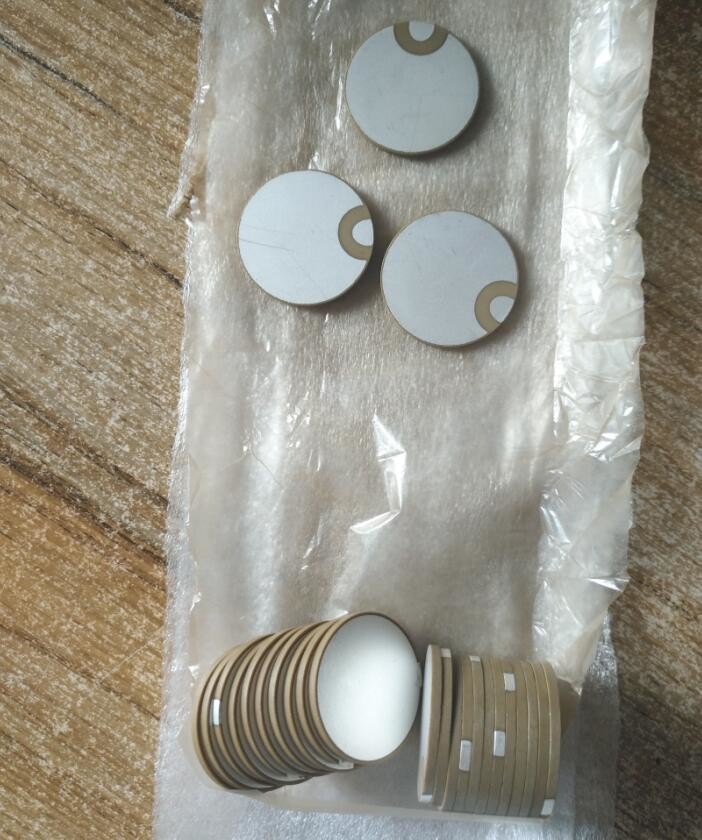

Piezo Ceramics Positive and Negative Electrode in The Same Side





Quick Detail :

all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.

the materials have the pzt4,pzt5 ,pzt8 or other required material.



Description :



◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.



Applications:



widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on





Specifications:





Dimensions

(mm)

Capacity

C (pF)

Weak field dissipation

Tgδ (12v)

 Strong field dissipation

Tg δ (400v)

Radial frequency

Fr(KHz)

Resonance impedance

Zm (∩ )

Thick frequency

Ft (KHz)

Coupling modulus

Kr (%)

Quality factor

Qm

Φ16*Φ8*4

340±10%

≤0.5%

≤1.0%

95.8±5%

≤20

512

≥45

≥800

Φ25*Φ10*4

935±10%

≤0.5%

≤1.0%

65.5±5%

≤15

512

≥45

≥800





Competitive Advantage :





◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:

Ultrasonic Piezoelectric Ceramic Plate Positive And Negative Electrode 0
