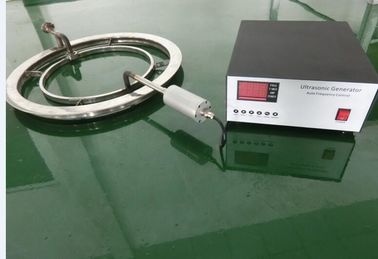

External Type Piezoelectric Ultrasonic Transducer For Vibration Screen Equipment

1PCS
MOQ
External Type Piezoelectric Ultrasonic Transducer For Vibration Screen Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Frequency: 33K
Transducer Power: 100W
Generator Power: 300W
Static Capacity: 5000
Screen Diameter: 100-120cm
Usage: Mining Etc
High Light:

ceramic piezoelectric transducer

,

ultrasonic sound generator

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description



Vibration Screen Equipment External Type Using In Light Industry





Quick Detail:



Ultrasonic vibration transducer separates materials into finer detail, more uniform and more efficient, which is especially suitable for fine-screening materials.

Stainless steel ultrasonic transducer for ultrasonic vibration system





Description:



Ultrasonic vibration transducer is one kind of piezoelectric transducers. It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The ultrasonic vibration transducer is widely used in vibrating screen equipment factory (so now the vibrating equipment can have both the mechanical and ultrasonic vibration).





Feature
1. Higher quality piezoelectric ceramic wafer guarantee strong and steady output of ultrasonic power;
2. High efficiency : high quality machine, high electro-acoustic conversion efficiency at the resonant frequencies;

4. High power: In the influence of pre-stressed screw, piezoelectric ceramic energy can achieve to the most;
5. Heat-resistance: small resonant impedance, low heat, wide temperature range.




Application:
Strong cavitations,powerful and effective, quick detergence.
Automotive and aerospace industry,mechanical industry,plating industry etc.







Specifications:





Type

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-33100

33

20-40

5000

100



Frequency: 33KHZ



Generator: 300W

Transducer: 100W



Competitive Advantage:



◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:
