28K Ceramic Piezoelectric Transducer / Low Frequency Ultrasonic Cleaning Transducer

28K Ceramic Piezoelectric Transducer / Low Frequency Ultrasonic Cleaning Transducer

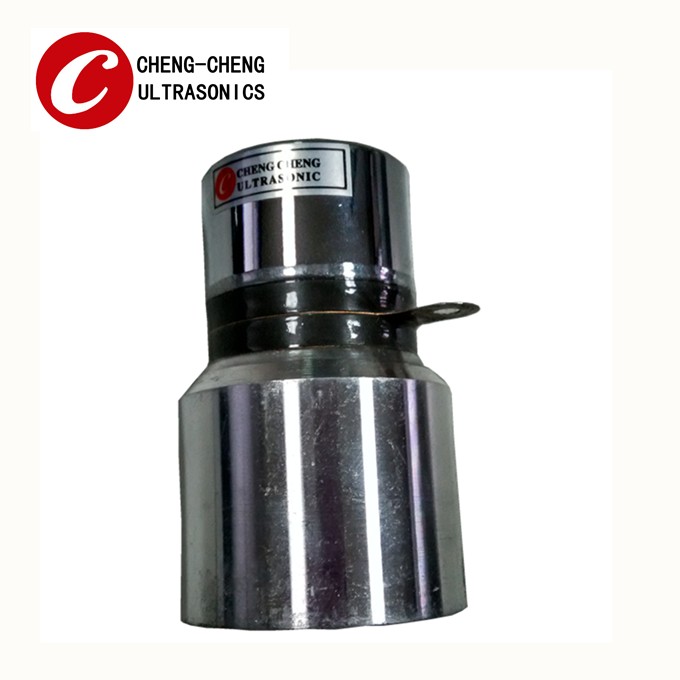

Large Image :  28K Ceramic Piezoelectric Transducer / Low Frequency Ultrasonic Cleaning Transducer

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $6--$15
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Name: Piezoelectric Ultrasonic Transducer Power: 100W
Applications: Ultrasonic Cleaning Machine And High-power Industry Cleaning Devices. Standard: CE ROSH TUV





50W 28K Ceramic Piezoelectric Cleaner Transducer Lower Frequency





Quick Detail





Ultrasonic transducer :

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.







Description



◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.





Specifications





Type



Length(mm)



Weight (g)



Frequency(KHz)±4%



Resonance Impedance

(Ω)



Static Capacity

(pF)±10%



Input Power(W)

CCH-7145D-20LA PZT-8



94



900



20



≤20





5200



100



CCH-6645D-25LB PZT-4

77



717



25



≤20



6800



100



CCH-6650D-28LB PZT-4

69



746



28



≤20



7900

120



CCH-6645D-28LB PZT-8

66



625



28



≤20



5200



100



CCH-6645D-28LB PZT-4

66



614



28



≤20



6800



100



CCH-6645D-30L PZT-8

64



551



30



≤20



5200

100



CCH-5938D-25LB PZT-4

77



530



25



≤20



4900



60



CCH-5938D-28LB PZT-8

68



470



28



≤20



3700



60



CCH-4535D-28ZB PZT-4

73



407



28



≤20



3950

50



CCH-4838D-33LB PZT-8

62



420



33



≤20



4700



60



CCH-4938D-40LA PZT-8

55



307



40



≤20



3700



60



CCH-4538D-40ZB PZT-4

57



301



40



≤20



4700



60



CCH-4535D-40LB PZT-4

48



254



40



≤20



4300

50



CCH-4535D-40ZB PZT-4

53



234



40



≤20



4200

50



CCH-3830D-54LA PZT-4

36



132



54



≤20



3500

35



CCH-4938D-70ZB PZT-8

80



468



70

≤20



5000



60



CCH-4038D-82ZB PZT-4

62



316



82



≤20



4900



60



CCH-3938D-100ZB PZT-4 53 289 100

≤20





4600 40
CCH-3938D-124ZB PZT-4

59



365



124



≤20



5200



60



CCH-3735D-133ZBL PZT-4

54



215



133



≤20



3900



50



CCH-4535-170ZB PZT-4 55 238 170

≤50



4200 50
CCH-3130D-200LB PZT-4 42 126 200

≤50



3200 30





Type



Length(mm)



Weight (g)



Frequency(KHz)±4%



Resonance Impedance

(Ω)



Static Capacity

(pF)±10%



Input Power(W)

CCH-5839D-25/50LB

PZT-4



80 540 25/50 <35 4900 40

CCH-4039D-80/38ZB

PZT-4

61 330 38/80 <35 4800 40

CCH-4039D-100/40ZB

PZT-4

54 280 40/100 <35 3200 40
CCH-5839D-25/50/80 PZT-4 80 540 25/50/80 <40 5000 35

CCH-4039D-100/73/40

PZT-4

56 260 40/73/120 <40 5100 35

CCH-4039D-120/80/40

PZT-4

56 260 40/80/120 <40 5100 35

CCH-5839D-25/50/80/120

PZT-4

80 540 25/50/80/120 <45 5200 30

CCH-4039D-120/170/80/40

PZT-4

56 260 40/80/120/170 <45 5400 30
