HomeProductsUltrasonic Impedance

CE ROSH TUV Approval Ultrasonic Impedance Frequency 1KHZ-1MHz For Production Using

CE ROSH TUV Approval Ultrasonic Impedance Frequency 1KHZ-1MHz For Production Using

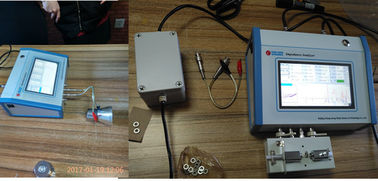

Large Image :  CE ROSH TUV Approval Ultrasonic Impedance Frequency 1KHZ-1MHz For Production Using

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $2000-4000
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.PER MONTH
Detailed Product Description



Ultrasonic Measuring Transducer / Ceramics Analyzer for Production Using





Frequency Range: 1KHZ-1MHz

Min.Frequency Step: 0.1HZ

Measurement accuracy: < 0.5%

Measurement speed: five seconds per pieces(equivalent to 600 scan dots)

Frequency accuracy: ±5ppm

Phase Accuracy: 0.15 degree

Enviroment temperature: 10-40 cº

Impedance Range: 1Ω~1MΩ

Frequency step: less than 1MHZ







Resonance Frequency: Fs

Half Power Frequency: F1 and F2

Maximum real admittance at Fs: Gmax

Dynamic Resistance: R1

Anti resonance frequency: Fp

Mechanical quality factor: Qm

Free capacitance: CT

Dynamic inductance: L1

Dynamic capacitance: C1

Static capacitance: Co

electromechanical coupling coefficient: Keff and Kp

Maximum real impedance at Fp: Zmax



Type C220 C320
Frequency Range 1KHZ-500Khz 1Khz-1Mhz
Measurement Index All parameter, graphics
Measurement Accuracy < 1% < 0.5%
Measurement Speed

10 second/piece(equivalent to 600 scan dots

)

5 second/piece(equivalent to 600 scan dots

)

Frequency Accuracy ±15ppm ±5ppm
Phase Resolution 0.15 degree 0.15 degree
Enviroment temperature 10-40 cº 10-40 cº
Impedance Range 1Ω~1MΩ 1Ω~1MΩ
Frequency Step 0.1Hz~any 0.1Hz~any
Application Ultrasonic equipment testing, ultrasonic cleaning, ultrasonic welding, ultrasonic medical Inspection production line of piezoelectric ceramic below 1MHzø

Service



Your inquiry related to our product & price will be replied within 24hours.
· Well-trained & experienced staff are to answer all your inquiries in English of course.
· Working time: 8:30am - 5:30pm, Monday to Friday (UTC+8).
· OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
· Your business relationship with us will be confidential to any third party.
· Good after-sale service offered, please get back if you got question.


Company introduction:


Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional

manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new

product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy

 task. This product has been widely used in distillation, mix and mill for various chemical procedures

and has received much praise from our customers.



Payment:

We accept paypal or T/T, western union etc.

Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.

Certification:

CE, ISO9001, ROSH
