High Reliability Ultrasonic Piezoelectric Transducer With Good Heat Resistance

High Reliability Ultrasonic Piezoelectric Transducer With Good Heat Resistance

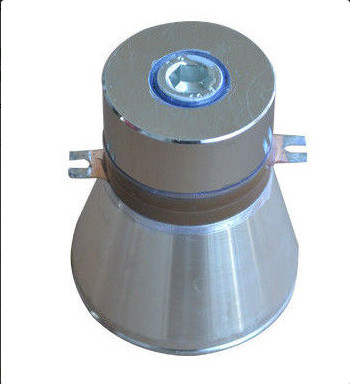

Large Image :  High Reliability Ultrasonic Piezoelectric Transducer With Good Heat Resistance

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCH-6845D-25LB

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: 5USD-12USD
Packaging Details: protection carton
Delivery Time: 5days-10 days
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Frequency:: 25KHz Input Power:: 100W
Length(mm):: 77 Weight(g):: 710
Resonance Impedance (Ω):: 10-20 Static Capacity (pF)±10%:: 6600
Color: Silver

25khz High Temperature Ultrasonic Cleaning Transducer With Good Heat Resistance

High Temperature Ultrasonic Transducer For Cleaning High Reliability





Quick Detail



Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
100w 25KHz Ultrasonic cleaning transducer for ultrasonic cleaning machine



Description



◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications

widely used in ultrasonic cleaning machine and high-power industry cleaning devices.


The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.




Specifications



100w 25KHz Ultrasonic cleaning transducer for ultrasonic cleaning machine



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-6845D-25LB

PZT-4

77

710

25

10-20

6600

100
