Piezo Ceramic Frequency Ultrasonic Cleaning Transducer With Drive Board

Piezo Ceramic Frequency Ultrasonic Cleaning Transducer With Drive Board

Large Image :  Piezo Ceramic Frequency Ultrasonic Cleaning Transducer With Drive Board

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $6--$15
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description

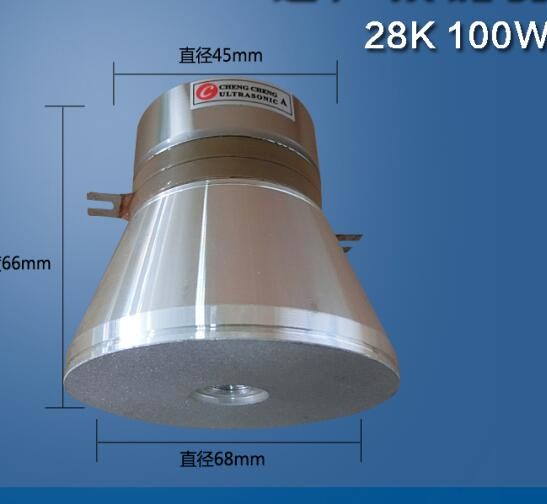

100W 28K Piezo Ceramic Frequency Ultrasonic Transducer with Drive Board


Quick Detail

three frequency ultrasonic transducer

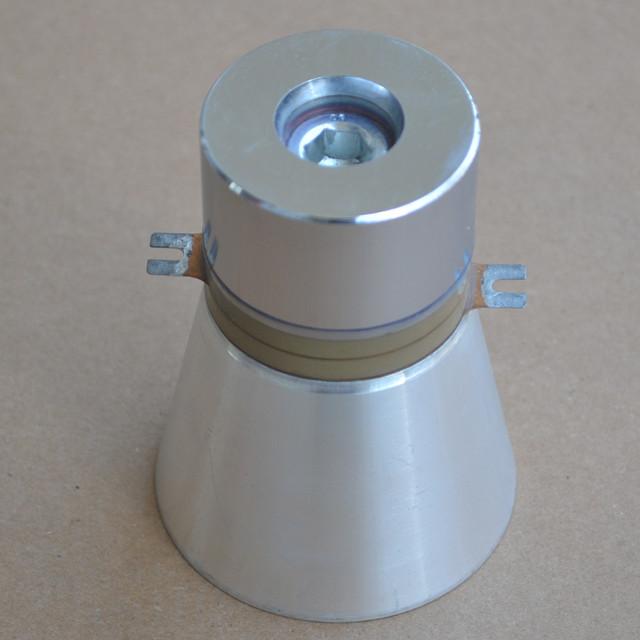

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
Multi Frequency Ultrasonic Transducer Piezo ceramic ultrasound transducer


Description


three frequency ultrasonic transducer:
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.


Applications


three frequency ultrasonic transducer :
widely used in ultrasonic cleaning machine and high-power industry cleaning devices.


Specifications







Type

Length

(mm)

Weight

(g)

Frequency

(KHz)

Resonance
Impedance
(Ω)

Static
Capacity
(pF)±10%

Input
Power
(W)

CCH-6845D-20LA
PZT-8

95 910 20 20-40 5000 100

CCH-6850D-28LB
PZT-8

67 666 28 10-25 7000 120

CCH-6845D-28LA
PZT-8

66 625 28 10-25 5000 100

CCH-6845D-28LB
PZT-4

66 624 28 10-25 6600 100

CCH-5838D-25LB
PZT-4

76 524 25 10-25 5400 60

CCH-5938D-25LA
PZT-8

65 525 25 10-25 3800 60

CCH-5938D-28LB
PZF-4

66 510 28 10-25 3800 60

CCH-4535D-28ZB
PZT-4

82 425 28 10-25 4100 50

CCH-6845D-30L
PZT-8

61 550 30 10-25 5000 100

CCH-4838D-33LA
PZT-8

58 420 33 10-25 3800 60

CCH-5038D-40LA
PZT-8

54 300 40 10-25 3800 60


Competitive Advantage


three frequency ultrasonic transducer:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
