Round Piezoelectric Ceramic Discs P8 P4 Material 43 X 2mm Good Construction

1PCS
MOQ
$2--$10
Price
Round Piezoelectric Ceramic Discs P8 P4 Material 43 X 2mm Good Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Colour: White
Size: 43 X 2mm
Shape: Round
Name: Piezoelectric Ceramic Discs
Feature: High Efficiency
Applications: Ultrasonic Sensor
High Light:

piezo ceramic disc

,

piezoceramic ring

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description



43x2mm P8 or P4 Material Round Shape Piezo Ceramic Disc or Customerized



Quick Detail



The piezoelectric ceramic wafer is electrical devices with a simple structure and light, with high sensitivity, no magnetic field spread without spillover, copper wire and magnets, low power consumption, less cost, easy mass production and the advantages of widely used. Suitable for ultrasonic and acoustic wave transmitting and receiving, piezoelectric ceramics is relatively large area and can also be used to detect pressure and vibration. The working principle is to use the reversible piezoelectric effect, applied voltage in the audio, and voice.



Piezo Electric Ceramic Piezoelectric Ceramic Discs For Ultrasonic Welding





Description



 Piezoelectric Ceramic:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.



Applications of



Piezoelectric Ceramic:

widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on

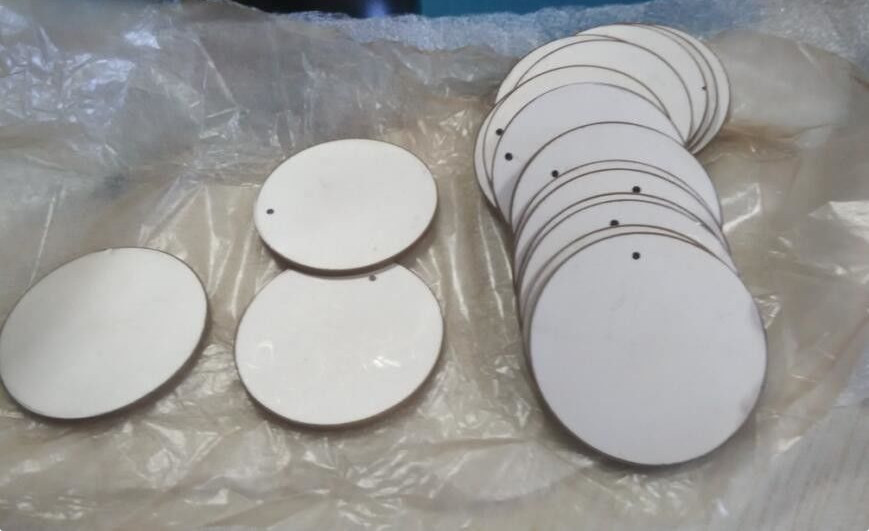

Round Piezoelectric Ceramic Discs P8 P4 Material 43 X 2mm Good Construction 0

Specifications





Competitive Advantage



disc Piezoelectric Ceramic:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:



Round Piezoelectric Ceramic Discs P8 P4 Material 43 X 2mm Good Construction 1
