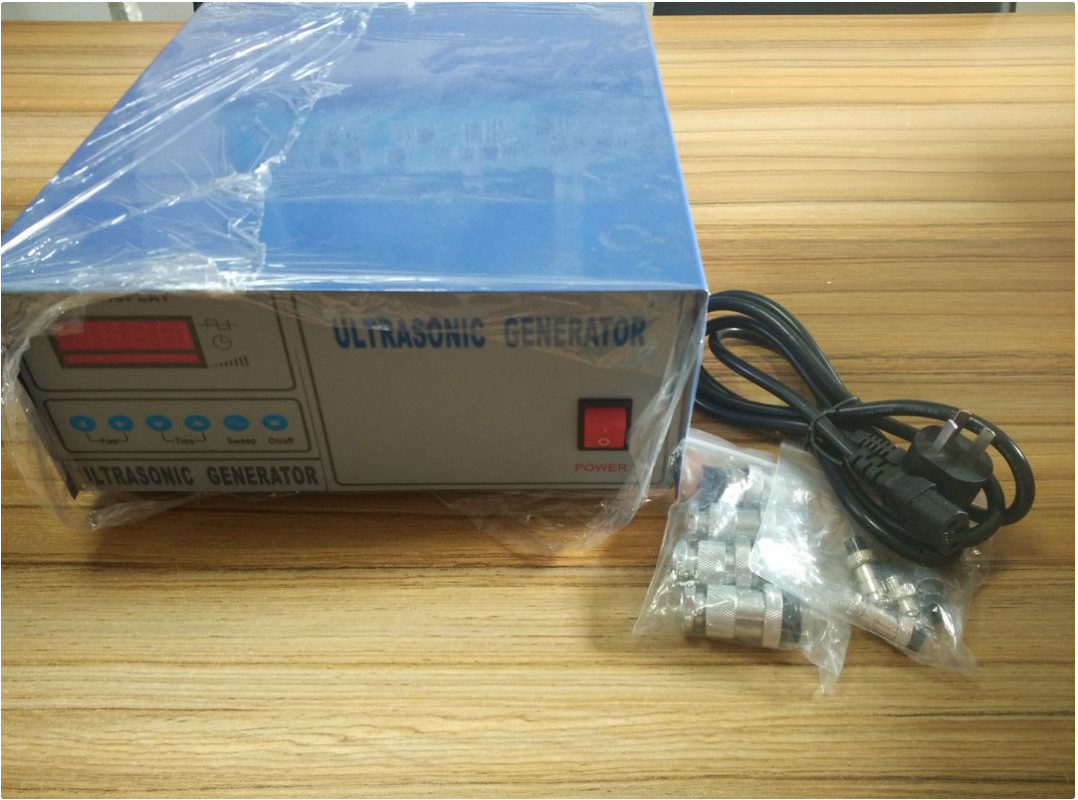

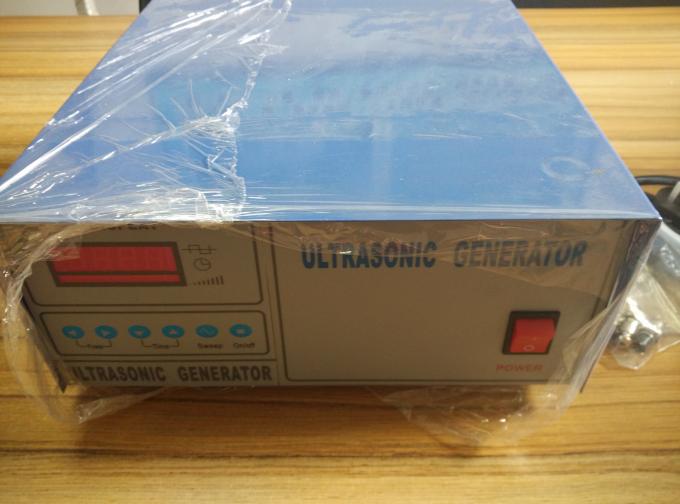

Industrial 25khz Digital Ultrasonic Generator Power Adjustable With Converter

Industrial 25khz Digital Ultrasonic Generator Power Adjustable With Converter

Large Image :  Industrial 25khz Digital Ultrasonic Generator Power Adjustable With Converter

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY-300W

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: $165
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 500PER MONTH
Detailed Product Description
Model Number: CCWY-300W Frequency: From 28 To 40khz
Voltage: 220-240v Or 100-120v Ultrasonic Power: 300W
Digital Panel: HAVE Application: Ultrasonic Cleaner
Keyword: Ultrasonic Generator For Cleaning Tank


Double Frequency Digital Ultrasonic Generator , 25/40KHZ 40/80KHZ Ultrasonic Cleaning Generator


Quick Detail:


Ultrasonic generator to produce a specific frequency of the signal, which
Ultrasonic generator (3) signal can be a sinusoidal signal, can also be a pulse signal, the frequency of this particular frequency is the frequency of the transducer.
20KHz,25KHz,28KHz,33KHz,40KHz,60KHz,80KHz,100KHz
Ultrasonic equipment in general the use of ultrasonic frequency of 20KHz, 25KHz, 28KHz, 33KHz, 40KHz, 60KHz, 80KHz, 100KHz or above has not yet been widely used.


Description:

The control box adopts advanced techniques, like separately-excited circuits, controlled by microcomputer,  automatic frequency tracking and frequency sweeping, etc. Compared with the traditional control box, it has better performance, more stable and reliable operation and constantly adjustable ultrasonic frequency, which can develop the potential capacity of a transducer to the maximum. The automatic tracking of the operating frequencies optimizes output matching, strengthens power and raises efficiency. With the unique frequency-sweeping operating pattern, the cleaning solution can form a fine stream of refluence, which can time-wash off the dirty uncovered by ultrasonic waves from the surface of working pieces and thus attain faster and more thorough cleaning effect and raise the efficiency of ultrasonic cleaning. At the same time, it has perfect protective capacity: over-temperature protection and over-current protection for more reliable operation; a 4-bit timer for more accurate time control to the second. With digital power adjustment, it can meet different cleaning demands. It permits optional alteration in the working state, so the operation is freer. The complete appliance is based on a building block design. With  a computer fault location and display system, its operation and maintenance are more convenient.

Warning: a generator should not be operated for long time at the current higher than the rated current.

Type

X4-A-I

X4-A -II

X4-A-III

X4-A-IV

X4-M-V

Driven power

600W-900W

900W-1500W

1500W-2100W

2100W-2700W

3000W

Power Control
(Adjustable)

0-100%

0-100%

0-100%

0-100%

0-100%

Working
Frequency

25KHZ-
40KHZ

25KHZ
-40KHZ

25KHZ-
40KHZ

25KHZ-
40KHZ

25KHZ-
40KHZ

Working voltage

AC220V
10% 50HZ

AC220V
 10% 50HZ

AC220V
10% 50HZ

AC220V
10% 50HZ

AC220V
 10% 50HZ

Max.numbers of
transducers

12-18pcs 60W

12-30pcs
60W

12-42pcs
60W

12-54pcs 60W

12-60pcs
60W

Rated Current
per transducer

0.1-0.17A

0.1-0.17A

0.1-0.17A

0.1-0.14A

0.1-0.14A

Output  Current
range

1-3A

1-4.5A

1-6A

1-7A

1-7.5A

Time Control
Range

0-59’59”

0-59’59”

0-59’59”

0-59’59”

0-59’59”

Environment
temperature

0-40℃

0-40℃

0-40℃

0-40℃

0-40℃

Relative
Humidity

40%-90%

40%-90%

40%-90%

40%-90%

40%-90%

Net  weight

10KG

11KG

12KG

12KG

12KG

Dimen
sion (mm)

390×
350×130

390×
350×130

390
×350×130

390×
350×130

390
×350×
130


Applications:

widely used in ultrasonic cleaning equipment
