200K Cleaning Piezoelectric Ultrasonic Transducer Making Industry Cleaner And Cleaning Tank

200K Cleaning Piezoelectric Ultrasonic Transducer Making Industry Cleaner And Cleaning Tank

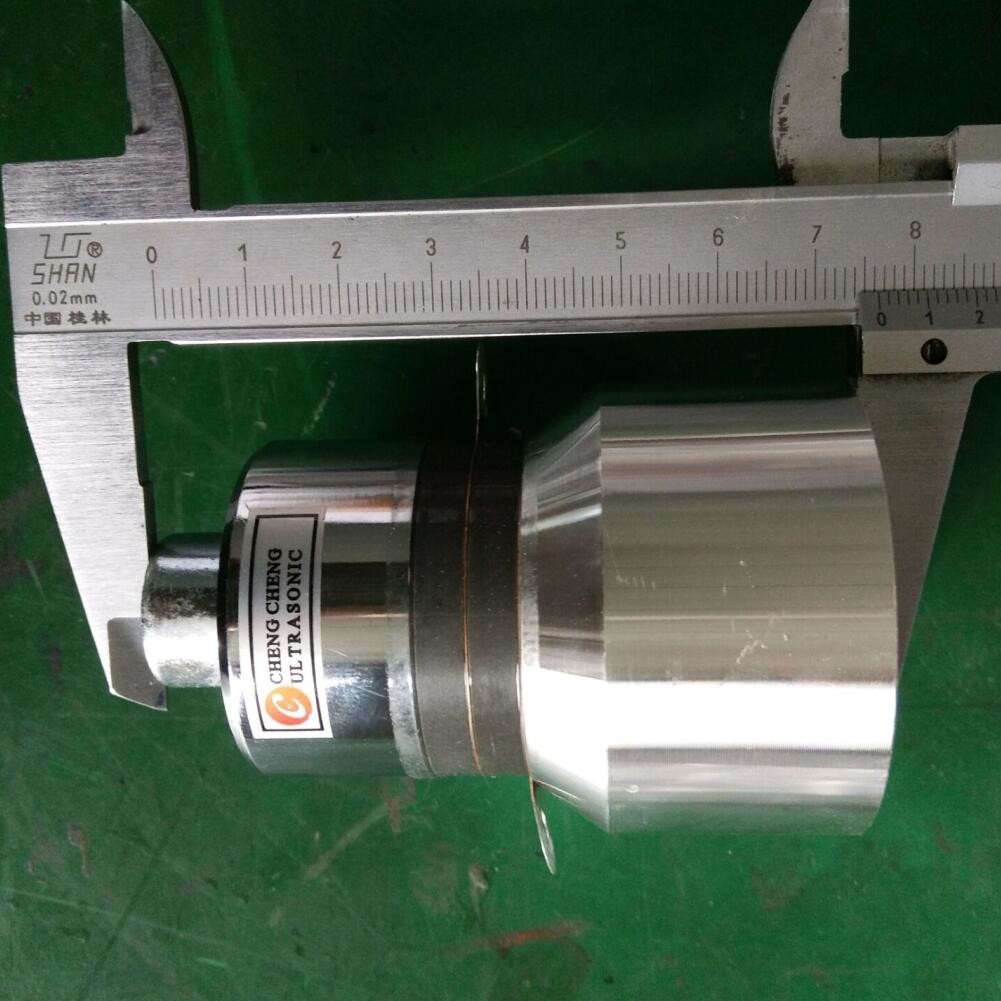

Large Image :  200K Cleaning Piezoelectric Ultrasonic Transducer Making Industry Cleaner And Cleaning Tank

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Item: CCH-3130D-200LB P4 Length(mm): 42
Weight(g): 126 Frequency(KHZ): 200K
Resonance Impedance: <50 Input Power(w): 30


High Frequency Cleaning Transducer Making Industry Cleaner and Cleaning tank


Description

ultrasonic cleaning transducer:
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.


Applications

widely used in ultrasonic cleaning machine and high-power industry cleaning devices.

Naming methods as following:

200K Cleaning Piezoelectric Ultrasonic Transducer Making Industry Cleaner And Cleaning Tank



Specifications

 ultrasonic cleaning transducer:

Type Length(mm) Weight(g) Frequency(KHZ) Resonance Impedance Static Capacity Input Power(w)
CCH-4938D-68ZB Pzt-8 80 460 68 10-20 3800 60




Type

Length(mm)

Weight (g)


Frequency(KHz)±4%


Resonance Impedance
(Ω)


Static Capacity
(pF)±10%


Input Power(W)

CCH-5839D-25/50LB
PZT-4


80 540 25/50 <35 4900 40

CCH-4039D-80/38ZB
PZT-4

61 330 38/80 <35 4800 40

CCH-4039D-100/40ZB
PZT-4

54 280 40/100 <35 3200 40
CCH-5839D-25/50/80 PZT-4 80 540 25/50/80 <40 5000 35

CCH-4039D-100/73/40
PZT-4

56 260 40/73/120 <40 5100 35

CCH-4039D-120/80/40
PZT-4

56 260 40/80/120 <40 5100 35

CCH-5839D-25/50/80/120
PZT-4

80 540 25/50/80/120 <45 5200 30

CCH-4039D-120/170/80/40
PZT-4

56 260 40/80/120/170 <45 5400 30


 Ultrasonic cleaning transducers generally use the horn-type composite matrix structure (which is Lan Jie Wenzizhu structure), which consists of front and rear metal cover, piezoelectric ceramic wafer, prestressed screw, electrode sheet, and insulating sleeve. Apply appropriate prestress, the transducer in high-power, high-amplitude conditions have good electromechanical conversion efficiency.
Ultrasonic cleaning transducer is a continuous work of the power transducer, generally the average continuous operation to calculate the constant and its power size.
