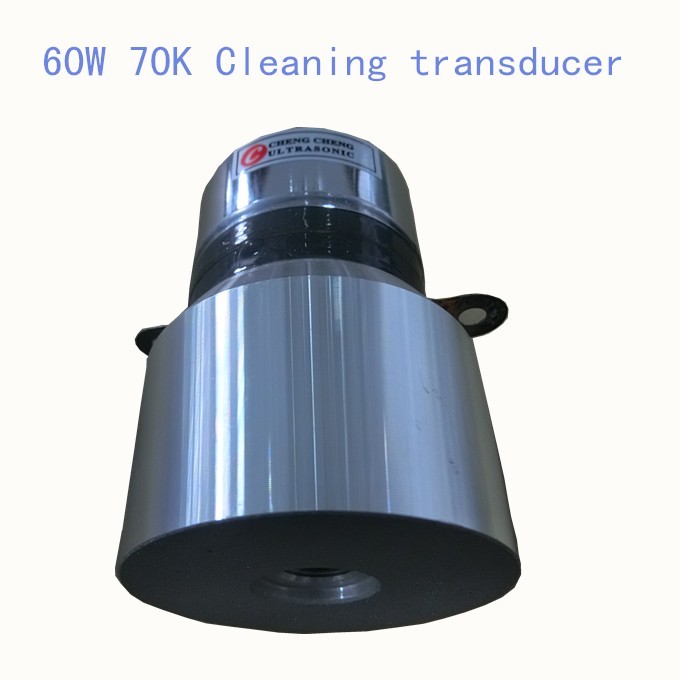

60 W 70K High Frequency Ultrasonic Transducer , Ultrasonic Cleaning Transducer And Sensor
Description
ultrasonic cleaning transducer:
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Naming methods as following:
Type: CCH-4938D-68ZB PZT-8
Length: 80mm
Weight: 460g
Frequency: 68K
Static Capacity(pF)±10%: 3800
Input power: 60W
Specifications
| | | | | | |
CCH-7145D-20LA PZT-8 | 94 | 900 | 20 | ≤20 | 5200 | 100 |
| CCH-6645D-25LB PZT-4 | 77 | 717 | 25 | ≤20 | 6800 | 100 |
| CCH-6650D-28LB PZT-4 | 69 | 746 | 28 | ≤20 | 7900 | 120 |
| CCH-6645D-28LB PZT-8 | 66 | 625 | 28 | ≤20 | 5200 | 100 |
| CCH-6645D-28LB PZT-4 | 66 | 614 | 28 | ≤20 | 6800 | 100 |
| CCH-6645D-30L PZT-8 | 64 | 551 | 30 | ≤20 | 5200 | 100 |
| CCH-5938D-25LB PZT-4 | 77 | 530 | 25 | ≤20 | 4900 | 60 |
| CCH-5938D-28LB PZT-8 | 68 | 470 | 28 | ≤20 | 3700 | 60 |
| CCH-4535D-28ZB PZT-4 | 73 | 407 | 28 | ≤20 | 3950 | 50 |
| CCH-4838D-33LB PZT-8 | 62 | 420 | 33 | ≤20 | 4700 | 60 |
| CCH-4938D-40LA PZT-8 | 55 | 307 | 40 | ≤20 | 3700 | 60 |
| CCH-4538D-40ZB PZT-4 | 57 | 301 | 40 | ≤20 | 4700 | 60 |
| CCH-4535D-40LB PZT-4 | 48 | 254 | 40 | ≤20 | 4300 | 50 |
| CCH-4535D-40ZB PZT-4 | 53 | 234 | 40 | ≤20 | 4200 | 50 |
| CCH-3830D-54LA PZT-4 | 36 | 132 | 54 | ≤20 | 3500 | 35 |
| CCH-4938D-70ZB PZT-8 | 80 | 468 | 70 | ≤20 | 5000 | 60 |
| CCH-4038D-82ZB PZT-4 | 62 | 316 | 82 | ≤20 | 4900 | 60 |
| CCH-3938D-100ZB PZT-4 | 53 | 289 | 100 | ≤20 | 4600 | 40 |
| CCH-3938D-124ZB PZT-4 | 59 | 365 | 124 | ≤20 | 5200 | 60 |
| CCH-3735D-133ZBL PZT-4 | 54 | 215 | 133 | ≤20 | 3900 | 50 |
| CCH-4535-170ZB PZT-4 | 55 | 238 | 170 | ≤50 | 4200 | 50 |
| CCH-3130D-200LB PZT-4 | 42 | 126 | 200 | ≤50 | 3200 | 30 |
