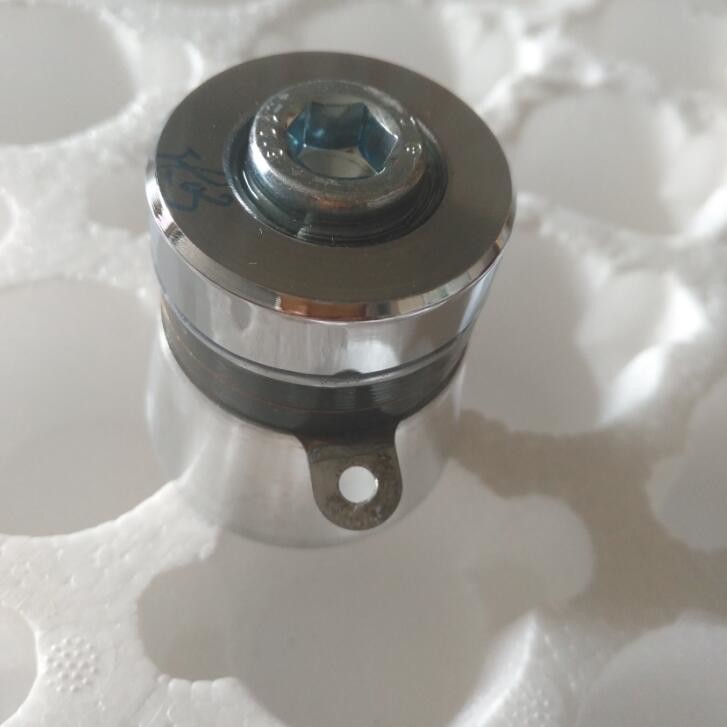

54 Khz Piezoelectric Ultrasonic Transducer Cleaning Machine Cleaner Sensor

1PCS
MOQ
54 Khz Piezoelectric Ultrasonic Transducer Cleaning Machine Cleaner Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Item: CCH-3130D-200LB P4
Length(mm): 42
Weight(g): 126
Frequency(KHZ): 200K
Resonance Impedance: <50
Input Power(w): 30
High Light:

ceramic piezoelectric transducer

,

ultrasonic sound generator

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description





54 Khz Piezoelectric Ultrasonic Transducer Cleaning Machine Cleaner Sensor



Cleaning Machine Cleaner sensor Piezo Ultrasonic Transducer Sensor













Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:



54 Khz Piezoelectric Ultrasonic Transducer Cleaning Machine Cleaner Sensor 0



54 Khz Piezoelectric Ultrasonic Transducer Cleaning Machine Cleaner Sensor 1



Type: CCH-3830D-54LA PZT-4

Length: 36mm

Weight: 135g

Frequency: 54K

Static Capacity(pF)±10%: 3200

Input power: 35W



Specifications








Type



Length(mm)



Weight (g)



Frequency(KHz)±4%



Resonance Impedance

(Ω)



Static Capacity

(pF)±10%



Input Power(W)

CCH-7145D-20LA PZT-8



94



900



20



≤20





5200



100



CCH-6645D-25LB PZT-4

77



717



25



≤20



6800



100



CCH-6650D-28LB PZT-4

69



746



28



≤20



7900

120



CCH-6645D-28LB PZT-8

66



625



28



≤20



5200



100



CCH-6645D-28LB PZT-4

66



614



28



≤20



6800



100



CCH-6645D-30L PZT-8

64



551



30



≤20



5200

100



CCH-5938D-25LB PZT-4

77



530



25



≤20



4900



60



CCH-5938D-28LB PZT-8

68



470



28



≤20



3700



60



CCH-4535D-28ZB PZT-4

73



407



28



≤20



3950

50



CCH-4838D-33LB PZT-8

62



420



33



≤20



4700



60



CCH-4938D-40LA PZT-8

55



307



40



≤20



3700



60



CCH-4538D-40ZB PZT-4

57



301



40



≤20



4700



60



CCH-4535D-40LB PZT-4

48



254



40



≤20



4300

50



CCH-4535D-40ZB PZT-4

53



234



40



≤20



4200

50



CCH-3830D-54LA PZT-4

36



132



54



≤20



3500

35



CCH-4938D-70ZB PZT-8

80



468



70

≤20



5000



60



CCH-4038D-82ZB PZT-4

62



316



82



≤20



4900



60



CCH-3938D-100ZB PZT-4 53 289 100

≤20





4600 40
CCH-3938D-124ZB PZT-4

59



365



124



≤20



5200



60



CCH-3735D-133ZBL PZT-4

54



215



133



≤20



3900



50



CCH-4535-170ZB PZT-4 55 238 170

≤50



4200 50
CCH-3130D-200LB PZT-4 42 126 200

≤50



3200 30







Company introduction:

Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.

Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.

Payment:

We accept paypal or T/T, western union etc.

Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.

Certification: ø

CE, ISO9001, ROSH
