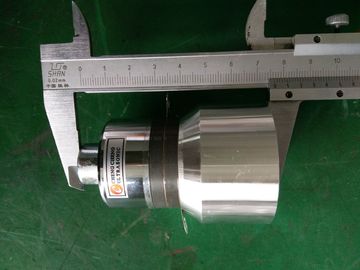

68 K Ultrasonic Power Transducer For Industry Cleaner Or Home Using Cleaner

68 K Ultrasonic Power Transducer For Industry Cleaner Or Home Using Cleaner

Large Image :  68 K Ultrasonic Power Transducer For Industry Cleaner Or Home Using Cleaner

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Item: CCH-3130D-200LB P4 Length(mm): 42
Weight(g): 126 Frequency(KHZ): 200K
Resonance Impedance: <50 Input Power(w): 30




68 K Ultrasonic Power Transducer For Industry Cleaner Or Home Using Cleaner



68K Cleaning Transducer for Industry Cleaner or Home using Cleaner

Quick Detail

Transducer, also known as vibrator, is a device that converts the electrical energy and mechanical energy (sound wave vibration) by the piezoelectric effect of piezoelectric ceramics and amplifies the acoustic impedance matching front and rear radiation cover blocks.
Ultrasonic cleaning ultrasonic vibration generated by the transducer, cavitation occurs in the water generated by the instantaneous impact of high-pressure foam was washed to achieve a good cleaning effect.




Applications

widely used in ultrasonic cleaning machine and high-power industry cleaning devices.

Naming methods as following:

68 K Ultrasonic Power Transducer For Industry Cleaner Or Home Using Cleaner

68 K Ultrasonic Power Transducer For Industry Cleaner Or Home Using Cleaner







Type

Length(mm)

Weight (g)


Frequency(KHz)±4%


Resonance Impedance
(Ω)


Static Capacity
(pF)±10%


Input Power(W)

CCH-5839D-25/50LB
PZT-4


80 540 25/50 <35 4900 40

CCH-4039D-80/38ZB
PZT-4

61 330 38/80 <35 4800 40

CCH-4039D-100/40ZB
PZT-4

54 280 40/100 <35 3200 40
CCH-5839D-25/50/80 PZT-4 80 540 25/50/80 <40 5000 35

CCH-4039D-100/73/40
PZT-4

56 260 40/73/120 <40 5100 35

CCH-4039D-120/80/40
PZT-4

56 260 40/80/120 <40 5100 35

CCH-5839D-25/50/80/120
PZT-4

80 540 25/50/80/120 <45 5200 30

CCH-4039D-120/170/80/40
PZT-4

56 260 40/80/120/170 <45 5400 30


 Ultrasonic cleaning transducers generally use the horn-type composite matrix structure (which is Lan Jie Wenzizhu structure), which consists of front and rear metal cover, piezoelectric ceramic wafer, prestressed screw, electrode sheet, and insulating sleeve. Apply appropriate prestress, the transducer in high-power, high-amplitude conditions have good electromechanical conversion efficiency.
Ultrasonic cleaning transducer is a continuous work of the power transducer, generally the average continuous operation to calculate the constant and its power size.
