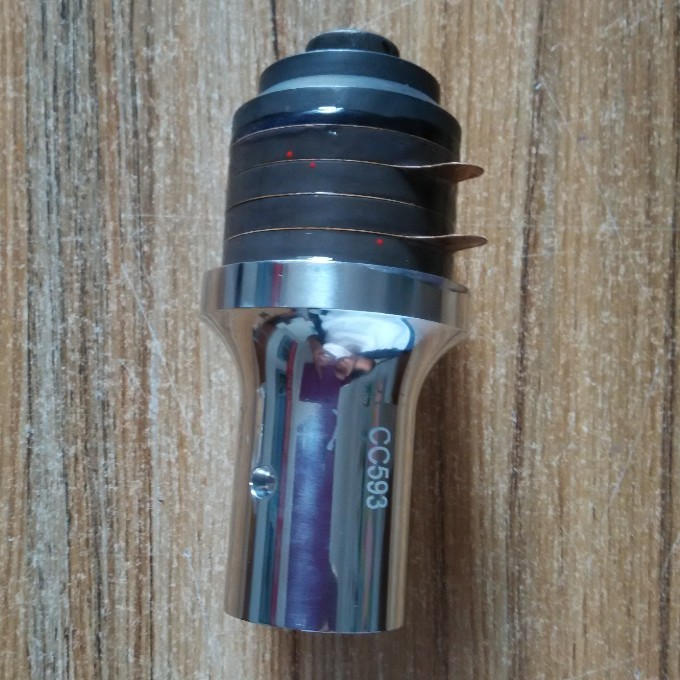

Ultrasonic Welding drilling Ultrasonic Sensor For Plastic Welding Machine
High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.
To design and fabricate the transducers according to customers' requirements.
| Type | Full-length(mm) | Joint Bolt(mm) | Frequency(KHz) | Resonance Impedance | Capacity(pf) | Input Power(w) |
| CCH-5555F-20Z P8 | 128 | M18x1 | 20 | 10 | 11000 | 2000 |
| CCH-5050F-20Z P8 | 124 | M18x1.5 | 20 | 12 | 10000 | 1500 |
Type: CCH-5555F-20Z P8
Full-length(mm): 128
Joint Bolt(mm): M18x1
Frequency(KHz): 20
Resonance Impedance: 10
Capacity(pf):11000
Input Power(w):2000
Beijing Cheng -Cheng Weiye Science and Technology Co., Ltd established in 1999. we are a professional manufacturer in ultrasonic transducers, ultrasonic generator and piezoelectric ceramics.
The ultrasonic transducers include ultrasonic cleaning transducer, welding, drilling and polishing transducer, Ultrasonic smashing cell transducer, IC Banding Transducer, Ultrasonic collar cleaning transducer, Ultrasonic vibration transducer, ultrasonic transducer for beauty, ultrasonic atomizing transducer, ultrasonic distance sensor, tubular transducer equipment, ultrasonic cleaning generator, ultrasonic cell disruptor etc.
