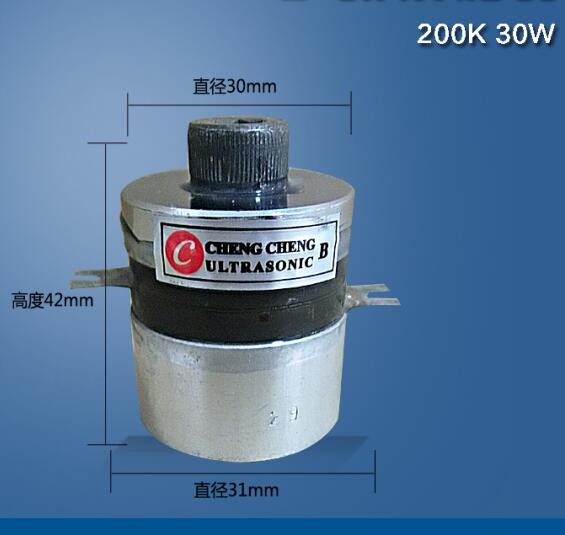

200K Higher frequency Piezoelectric Ultrasonic Transducer , Cleaning Piezoceramic Transducer

1PCS
MOQ
200K Higher frequency Piezoelectric Ultrasonic Transducer , Cleaning Piezoceramic Transducer
Features Gallery Product Description Request A Quote
Features
Specifications
Item: CCH-3130D-200LB P4
Length(mm): 42
Weight(g): 126
Frequency(KHZ): 200K
Resonance Impedance: <50
Input Power(w): 30
High Light:

piezo ceramic transducer

,

ultrasonic sound generator

Basic Infomation
Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Product Description



200K Higher frequency Piezoelectric Ultrasonic Transducer , Cleaning Piezoceramic Transducer



Quick Detail



 ultrasonic cleaning transducer:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.





Description



ultrasonic cleaning transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:



200K Higher frequency Piezoelectric Ultrasonic Transducer , Cleaning Piezoceramic Transducer 0



200K Higher frequency Piezoelectric Ultrasonic Transducer , Cleaning Piezoceramic Transducer 1



Specifications



 ultrasonic cleaning transducer:



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-3130D-200LB pzt-4

42

126

200

<50

3200

30



Competitive Advantage



 ultrasonic cleaning transducer:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:

200K Higher frequency Piezoelectric Ultrasonic Transducer , Cleaning Piezoceramic Transducer 2
