40K / 80k / 120K Triple Frequency Ultrasonic Cleaning Vibration Transducer

40K / 80k / 120K Triple Frequency Ultrasonic Cleaning Vibration Transducer

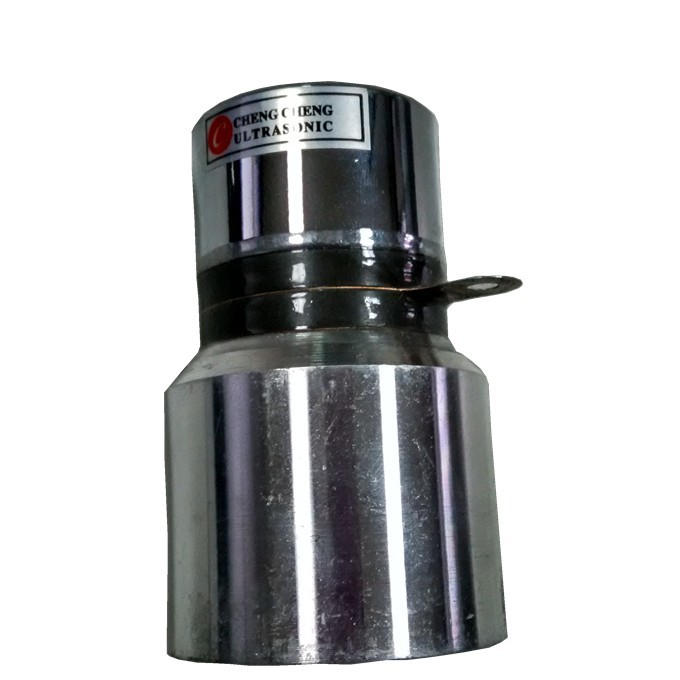

Large Image :  40K / 80k / 120K Triple Frequency Ultrasonic Cleaning Vibration Transducer

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 20.000.000 PER MONTH
Detailed Product Description
Item: CCH-4040D-40/80/120 KHZ P4 Length(mm): 56
Weight(g): 260 Frequency(KHZ): 40K/80K/120K
Resonance Impedance: <40 Input Power(w): 60



40K/80k/120K Triple frequency Ultrasonic Cleaning Vibration Transducer



Quick Detail



 ultrasonic cleaning transducer:

Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.





Description



ultrasonic cleaning transducer:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.





Applications



widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Naming methods as following:

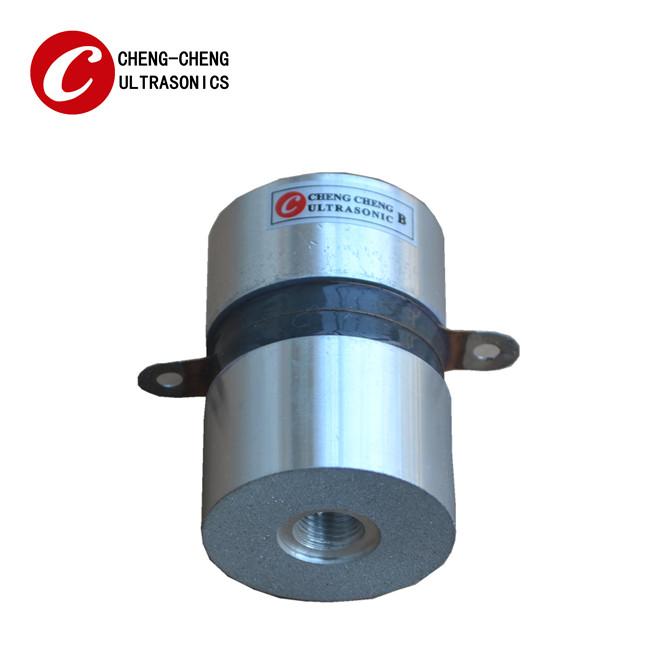

40K / 80k / 120K Triple Frequency Ultrasonic Cleaning Vibration Transducer



40K / 80k / 120K Triple Frequency Ultrasonic Cleaning Vibration Transducer



Specifications



25khz60w ultrasonic cleaning transducer:



Type

Length



(mm)

Weigh



(g)

Frequency



(KHz)

Resonance

Impedance

(Ω)

Static

Capacity

(pF)±10%

Input

Power

(W)

CCH-4040D-40/80/120

KHZ P4

56

260

40/80/120

<40

5400

60



Competitive Advantage



 ultrasonic cleaning transducer:

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:

40K / 80k / 120K Triple Frequency Ultrasonic Cleaning Vibration Transducer
