High Efficiency Ultrasonic Vibrating Screen Transducer Vibration Sieve Transducer

High Efficiency Ultrasonic Vibrating Screen Transducer Vibration Sieve Transducer

High Efficiency Ultrasonic Vibrating Screen Transducer Vibration Sieve Transducer supplier High Efficiency Ultrasonic Vibrating Screen Transducer Vibration Sieve Transducer supplier

Large Image :  High Efficiency Ultrasonic Vibrating Screen Transducer Vibration Sieve Transducer

Product Details:

Place of Origin: CN
Brand Name: CCWY
Certification: CE ROSH TUV
Model Number: CCWY-33Khz 100W

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 550USD/piece
Packaging Details: CARTON
Delivery Time: On stock
Payment Terms: T/T
Supply Ability: 100 PER MONTH
Detailed Product Description
Product Name: Ultrasonic Vibration Equipment Frequency: 33Khz
Power: 100W Voltage: 220 V 50 Hz Or 110 V 60 Hz

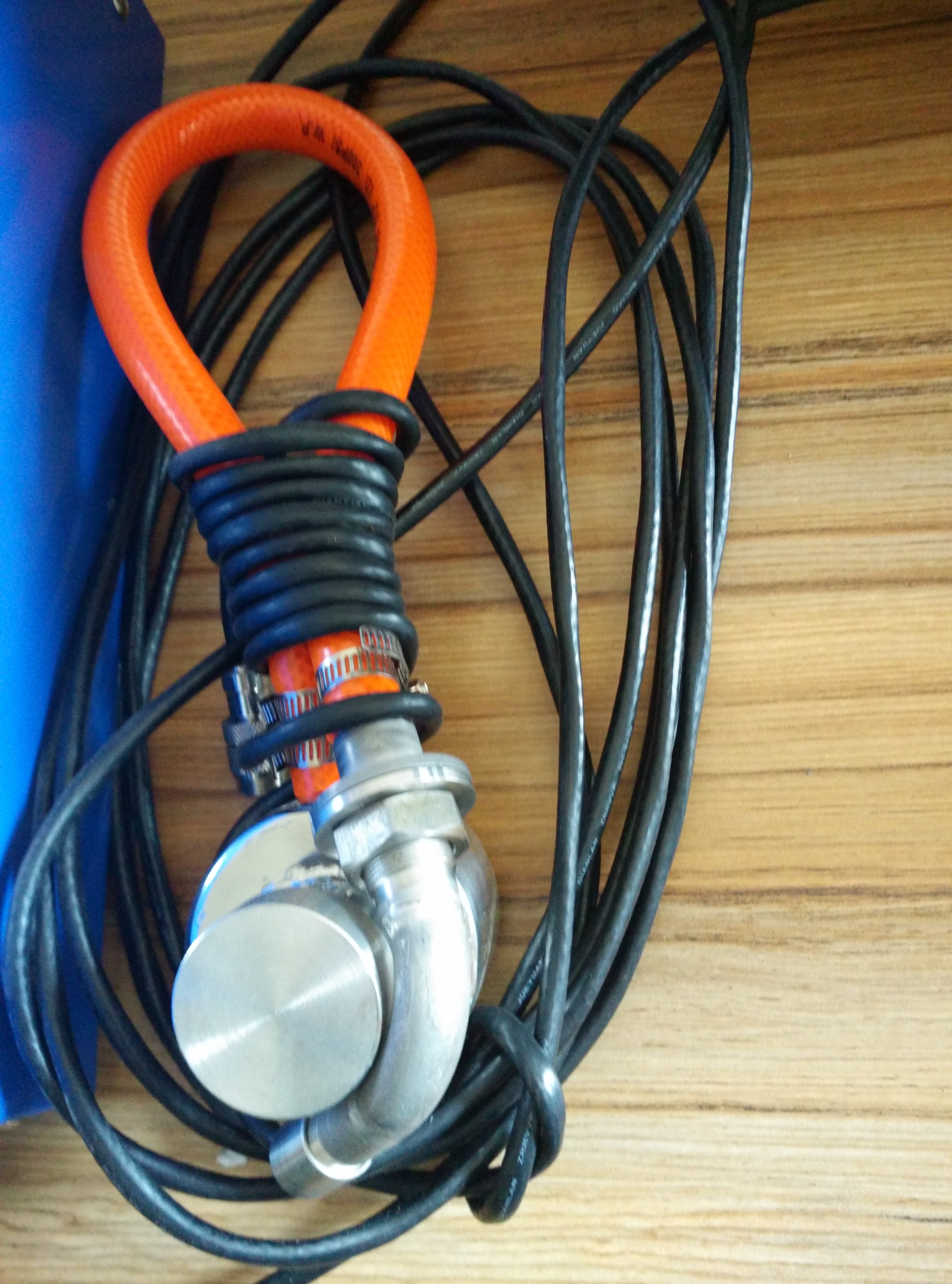

Ultrasonic Vibrating Sieve Transducer to Match with Around 1m Diameter Screen





Frequency: 33KHZ

Resonance Impedance: 20-40

Static Capacity: 5000

Input Power: 100W

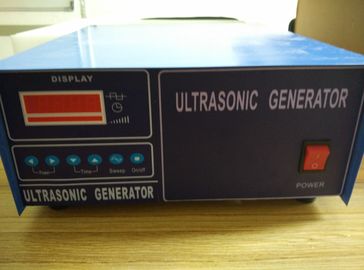

  Ultrasonic vibrating screen is the ultrasonic generator and vibrating screen together

new products, the principle is to 220 v, 50 hz or 110 v, 60 hz power

can be converted into high frequency electric energy of 18 to 40 KHZ, reoccupy perfectly

on the sieve box ultrasonic vibrator head will be high frequency electric energy into mechanical energy,

make the invisible to the naked eye of supersonic vibration sieve surface,

makes the ultra micro powder accept huge ultrasonic acceleration,

the material on the surface of the screen always stay suspended state,

and thus dampen adhesion, friction, pancake, wedging, such as screen blocking factors,

thus achieve the purpose of efficient screening and network, makes the ultra micro powder screening

for easy. Especially suitable for high quality, fine powder of users.





Feature
1. The piezoelectric ceramic chip adopts high quality parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.





Application

1. To achieve high accuracy, high mesh screening at the same time,

    the control of a narrow particle size range.

2. Can be used single layer and multilayer.

3. Screen self-cleaning function: greater than 500 mesh sieve,

    no mesh plug, no attenuation screening efficiency.

4. Solve the strong adsorption, easy to reunite, electrostatic, high precision,

    high density, high light specific gravity and other screening problem.

5. Screening accuracy can improve the 1-70%, yield can increase 0.5 to 10 times.







Company introduction:



We are dedicated to research and development in the ultrasonic field



Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer specializing in ultrasonic transducers, ultrasonic apparatus and piezoelectric ceramics.



Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.



Our headquarter is located in Beijing, China. Our manufacturing base is in Baoding, Hebei province. Cheng-cheng Weiye also has two branches in Shenzhen and Zhangjiagang and two sales agents in Japan and the USA. At present, there are five departments of the company comprising R&D, Production, Domestic Sale, Export and After-sales service.

Payment:



We accept paypal or T/T, western union etc.





Shipping:

Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.



Certification:



CE, ISO9001, ROSH
