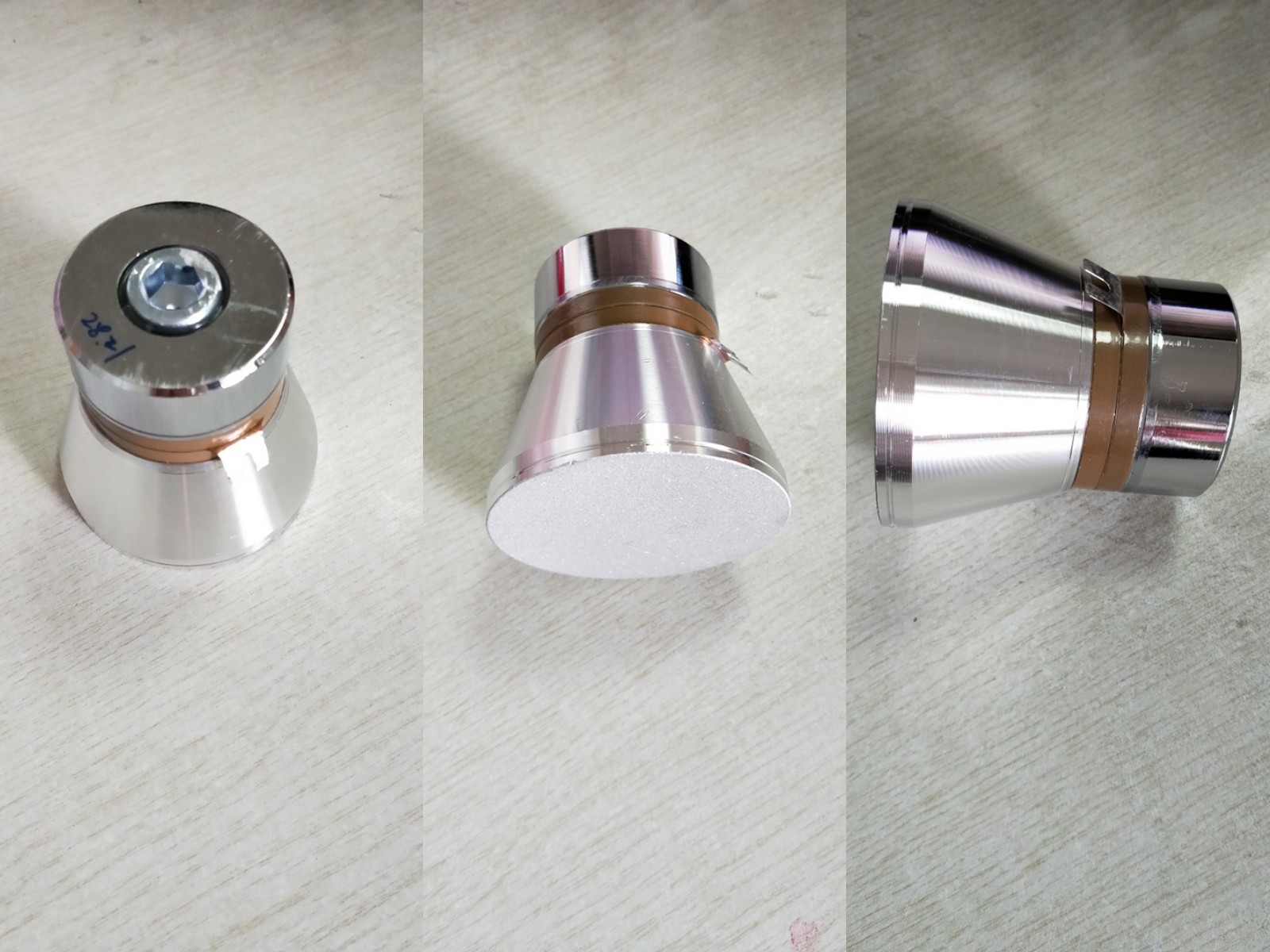

28KHZ High Power 100W Ultrasonic Cleaning Transducer
Quick Detail:
Piezoelectric transducer uses the piezoelectric effect to realize transduction between electric and sound energy.it comprises a radiation head ,electrode ,cap,prestressed bolt,piezoelectric ship and insulating tube .The piezoelectric transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.
Description:
Features
◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.
Applications:
Specifications:
|
Type |
Length
(mm) |
Weigh
(g) |
Frequency
(KHz) |
Resonance Impedance (Ω) |
Static Capacity (pF)±10% |
Input Power (W) |
|
CCH-6845D-20LA PZT-8 |
95 | 910 | 20 | 20-40 | 5000 | 100 |
|
CCH-6850D-28LB PZT-8 |
67 | 666 | 28 | 10-25 | 7000 | 120 |
|
CCH-6845D-28LA PZT-8 |
66 | 625 | 28 | 10-25 | 5000 | 100 |
|
CCH-6845D-28LB PZT-4 |
66 | 624 | 28 | 10-25 | 6600 | 100 |
|
CCH-5838D-25LB PZT-4 |
76 | 524 | 25 | 10-25 | 5400 | 60 |
|
CCH-5938D-25LA PZT-8 |
65 | 525 | 25 | 10-25 | 3800 | 60 |
|
CCH-5938D-28LB PZF-4 |
66 | 510 | 28 | 10-25 | 3800 | 60 |
|
CCH-4535D-28ZB PZT-4 |
82 | 425 | 28 | 10-25 | 4100 | 50 |
|
CCH-6845D-30L PZT-8 |
61 | 550 | 30 | 10-25 | 5000 | 100 |
|
CCH-4838D-33LA PZT-8 |
58 | 420 | 33 | 10-25 | 3800 | 60 |
|
CCH-5038D-40LA PZT-8 |
54 | 300 | 40 | 10-25 | 3800 | 60 |
|
CCH-4535D-40LB PZT-4 |
57 | 300 | 40 | 10-25 | 4100 | 50 |
|
CCH-4838D-40ZB PZT-8 |
56 | 310 | 40 | 10-25 | 3800 | 60 |
|
CCH-4838S-50LA PZT-4 |
40 | 160 | 50 | 30-60 | 2100 | 30 |
|
CCH-3830D-54LA PZT-4 |
36 | 135 | 54 | 10-25 | 3200 | 35 |
|
CCH-4938D-68ZB PZT-8 |
79 | 535 | 68 | 15-30 | 3800 | 60 |
|
CCH-4038D-80ZB PZT-4 |
53 | 290 | 80 | 15-30 | 5400 | 60 |
|
CCH-4838D-120ZB PZT-4 |
57 | 255 | 120 | 15-30 | 5400 | 60 |
|
CCH-4535D-135ZB PZT-4 |
28 | 215 | 135 | 15-30 | 4200 | 50 |
|
CCH-5038D-25(40)LB PZT-8 |
65 | 442 | 25/40 | 15-30 | 3800 | 60 |
Competitive Advantage:
◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:
Company introduction:
Established in 1999, Beijing Cheng-cheng Weiye Science and Technology Co., Ltd is a professional manufacturer in ultrasonic transducers, ultrasonic equipment and piezoelectric ceramics.
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
