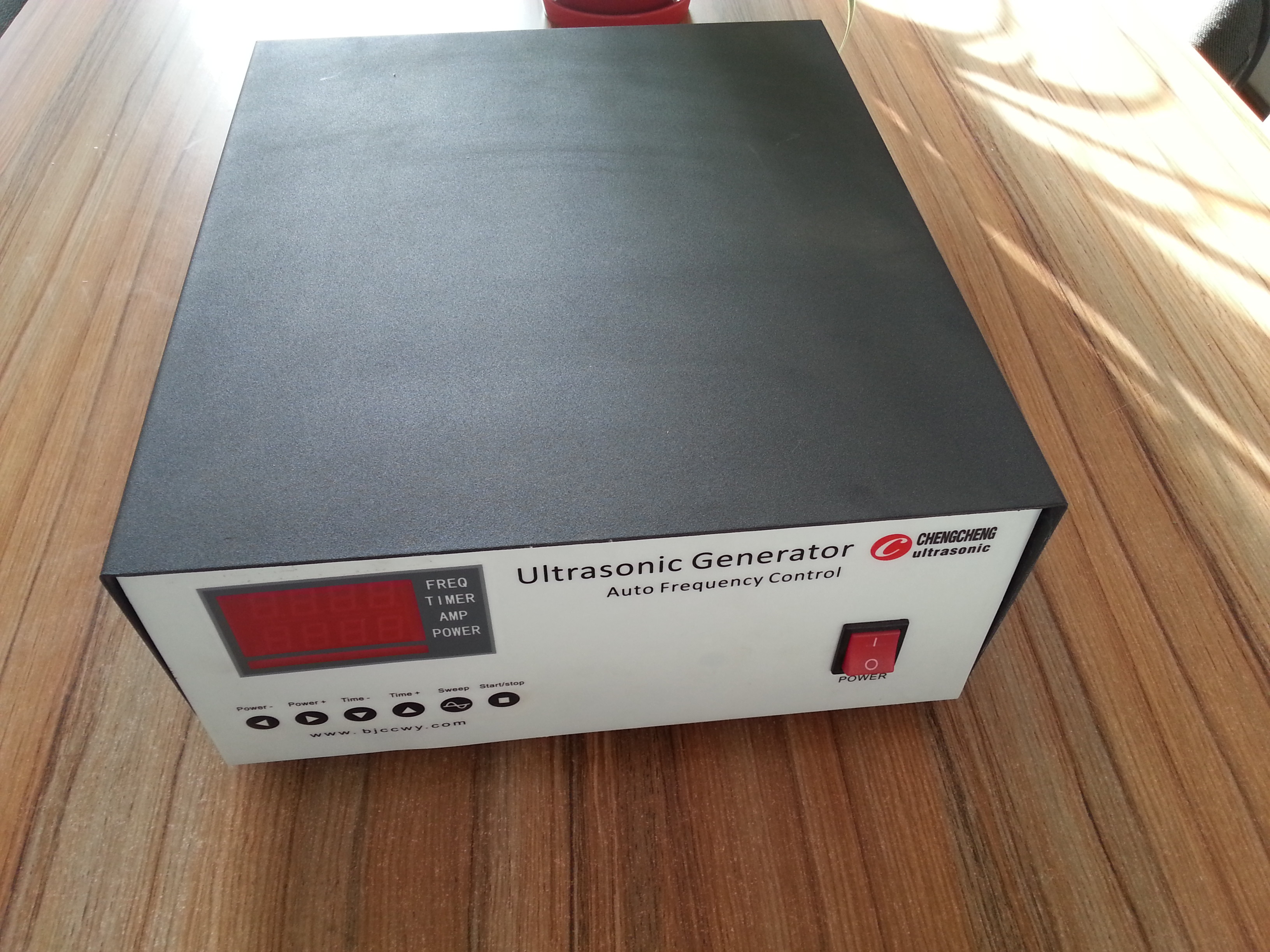

Ultrasonic Cleaning Vibrating Transducer Sensor and Ultrasound power Supply
| Driven power | 600W-900W | 900W-1500W | 1500W-2100W | 2100W-2700W | 3000W |
|
Power Control (Adjustable) |
0-100% | 0-100% | 0-100% | 0-100% | 0-100% |
| Working Frequency | 25KHZ-40KHZ | 25KHZ-40KHZ | 25KHZ-40KHZ | 25KHZ-40KHZ | 25KHZ-40KHZ |
| Working voltage | AC220V 10% 50HZ | AC220V 10% 50HZ | AC220V 10% 50HZ | AC220V 10% 50HZ | AC220V 10% 50HZ |
|
Max.numbers of transducers |
12-18 pcs 60W | 12-30 pcs 60W | 12-42 pcs 60W | 12-54 pcs 60W | 12-60 pcs 60W |
|
Rated Current per transducer |
0.1-0.17A | 0.1-0.17A | 0.1-0.17A | 0.1-0.14A | 0.1-0.14A |
|
Output Current range |
1-3A | 1-4.5A | 1-6A | 1-7A | 1-7.5A |
|
Time Control Range |
0-59’59” | 0-59’59” | 0-59’59” | 0-59’59” | 0-59’59” |
|
Environment temperature |
0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ |
| Relative Humidity | 40%-90% | 40%-90% | 40%-90% | 40%-90% | 40%-90% |
| Net weight | 10KG | 11KG | 12KG | 12KG | 12KG |
| Dimension (mm) | 390×350×130 | 390×350×130 | 390×350×130 | 390×350×130 | 390×350×130 |
Feature
1. The piezoelectric ceramic chip adopts high quality parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.
Application
1. To achieve high accuracy, high mesh screening at the same time,
the control of a narrow particle size range.
2. Can be used single layer and multilayer.
3. Screen self-cleaning function: greater than 500 mesh sieve,
no mesh plug, no attenuation screening efficiency.
4. Solve the strong adsorption, easy to reunite, electrostatic, high precision,
high density, high light specific gravity and other screening problem.
5. Screening accuracy can improve the 1-70%, yield can increase 0.5 to 10 times.
Company introduction:
Notably in 2004, we researched and developed our ultrasonic tubular transducer equipment into a new product that turns the extreme inconvenience brought about by pipeline and vacuum cleaning into an easy task. This product has been widely used in distillation, mix and mill for various chemical procedures and has received much praise from our customers.
Payment:
We accept paypal or T/T, western union etc.
Shipping:
Normally if your quantity is not too much, we ship out by Fedex express economy. Or as your requested by sea or other express, according to your quantity.
Certification:
CE, ISO9001, ROSH
